Technical Specs
Overview
Achieve an even decay time from low to high frequencies while providing the necessary absorption to flatten the frequency response

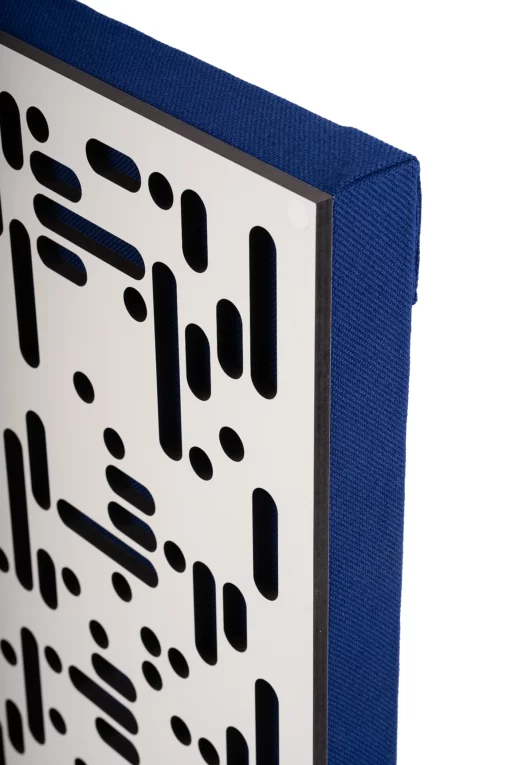

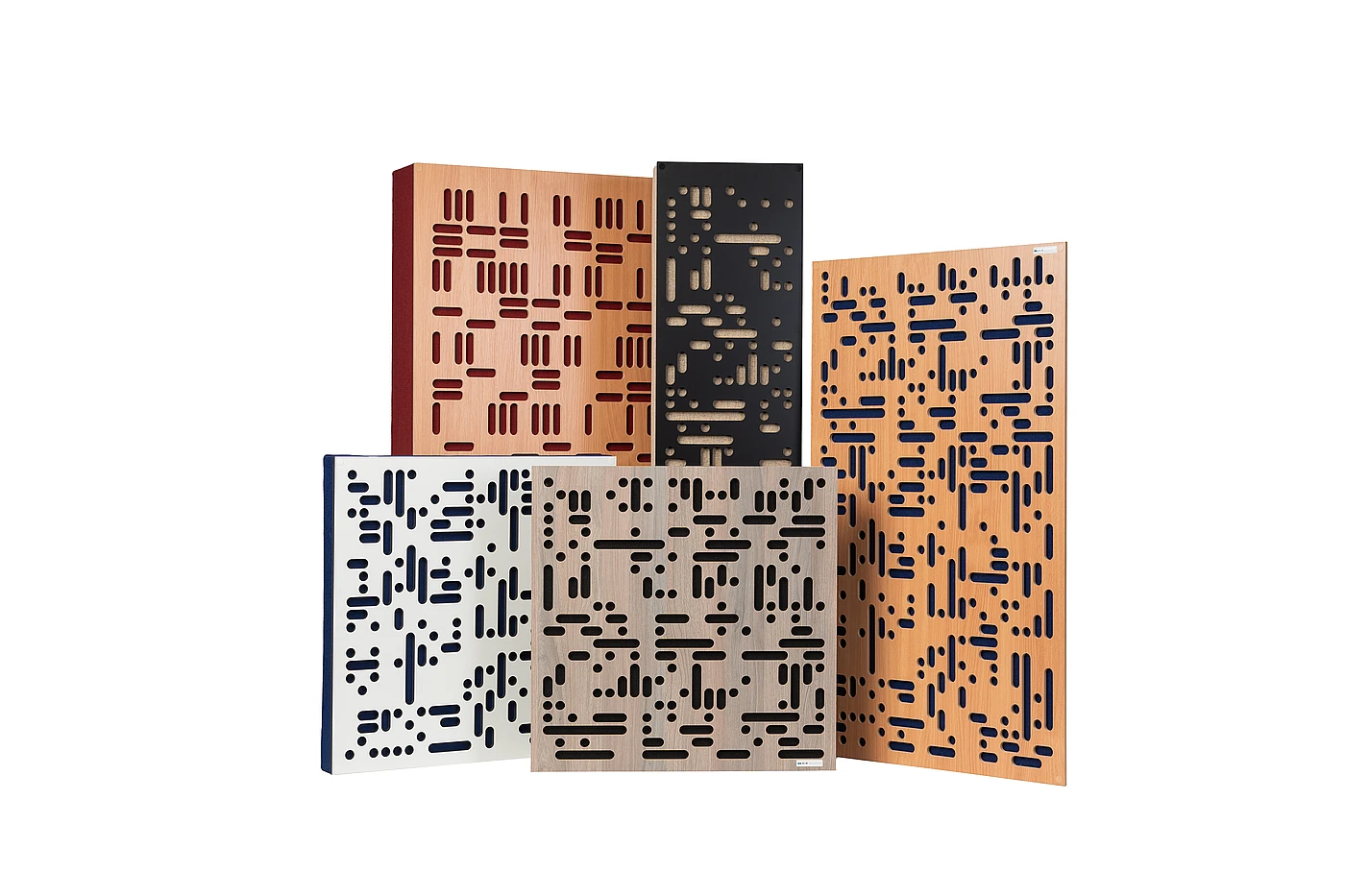

Our Alpha Series panels are made with rigid fiberglass absorption material wrapped in your choice of fabric, and finished with an attractive plate which has a mathematical sequence of slots for either one-dimensional scattering/diffusion or two-dimensional scattering/diffusion
Panel core made from 100% recycled materials, environmentally friendly, no formaldehyde or urea formaldehyde
Specs
Core
Rigid fiberglass provides twice the low end absorption over similar foam-based products.
Design
Thin face plate has mathematical sequence of slots for spatial diffusion, but also allows low frequency waves to pass through to the fiberglass panel for low end absorption.
Weight
Square = 7lbs | Rectangle = 15lbs

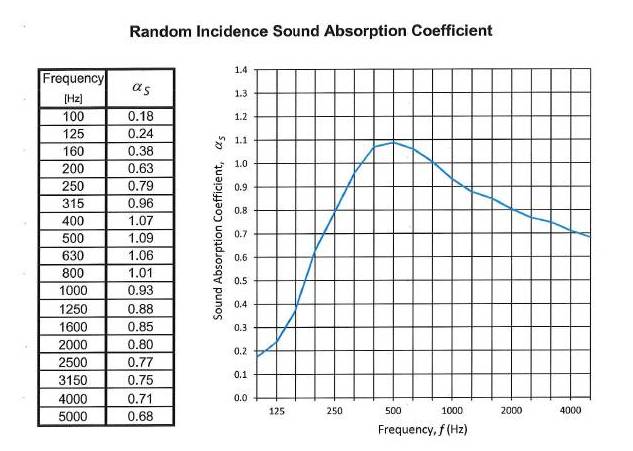

NRC
1.05 (versus foam products where NRC = 0.4)
Construction
ECOSE® technology absorption material
Quality hand-made construction and craftsmanship
Standard Sizes
Square 23″x23″
Narrow 11.5″x45.5″
Rectangle 23″x45.5″
Suggested Placement

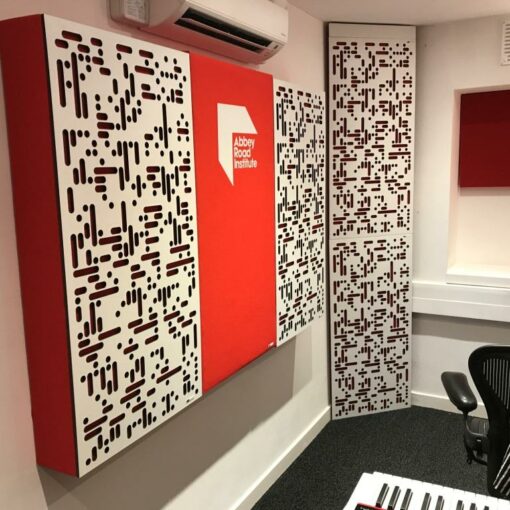

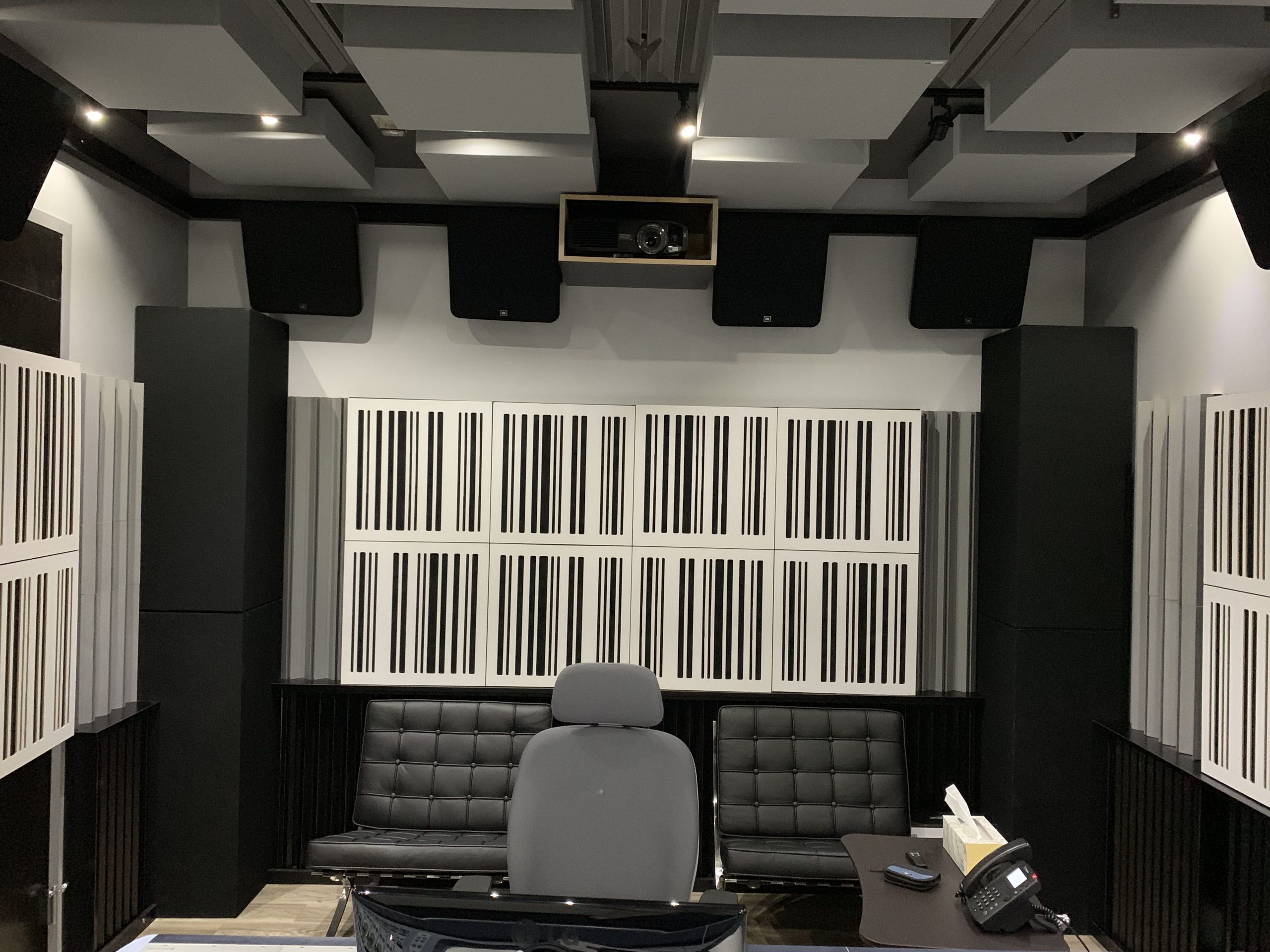

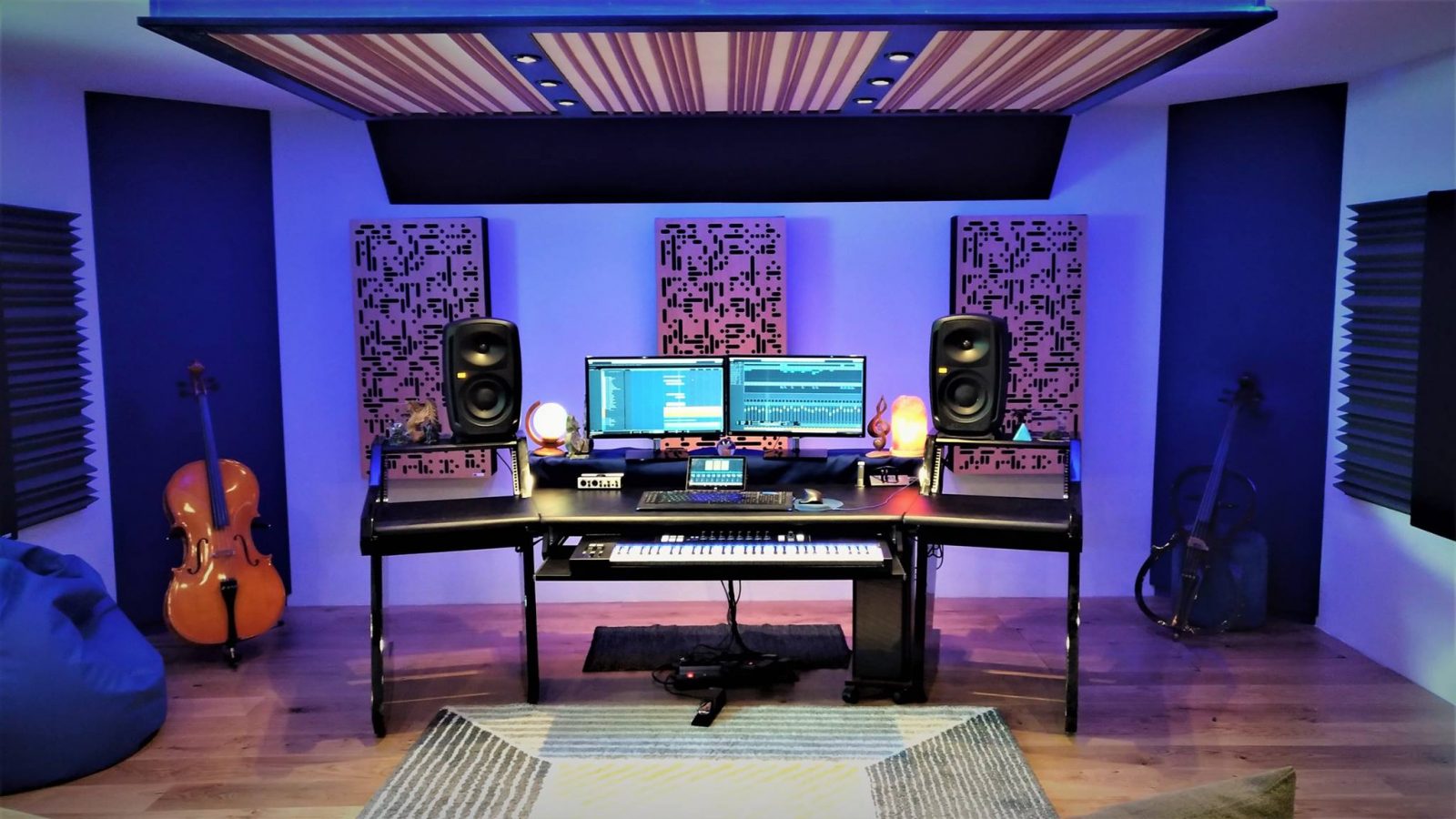

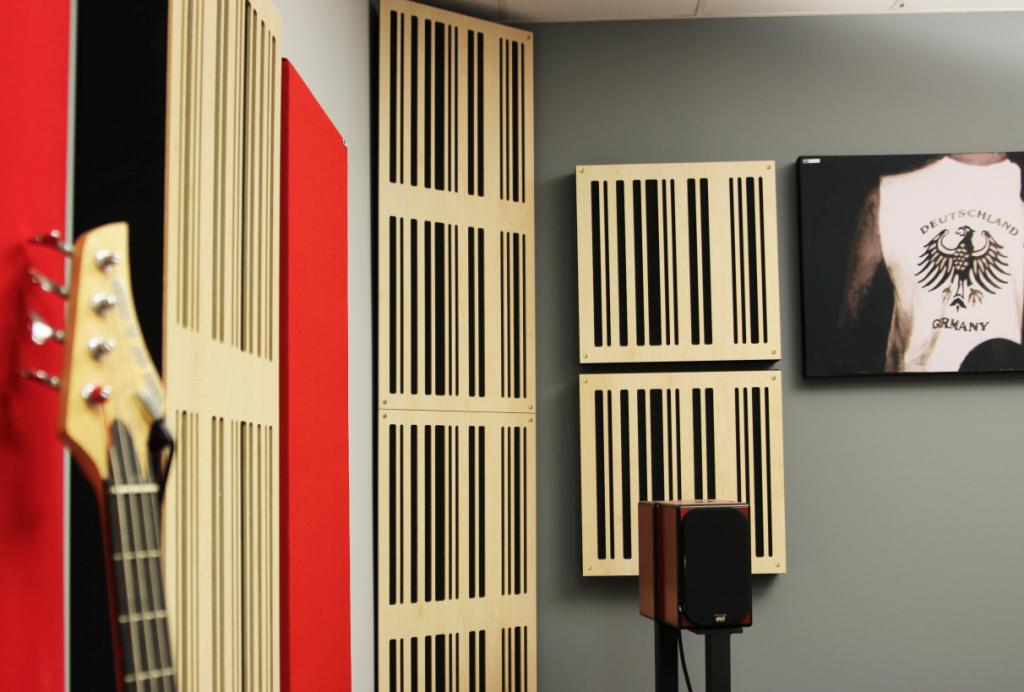

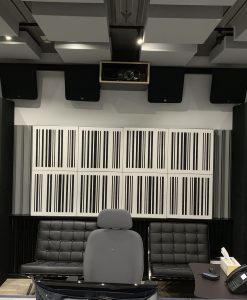

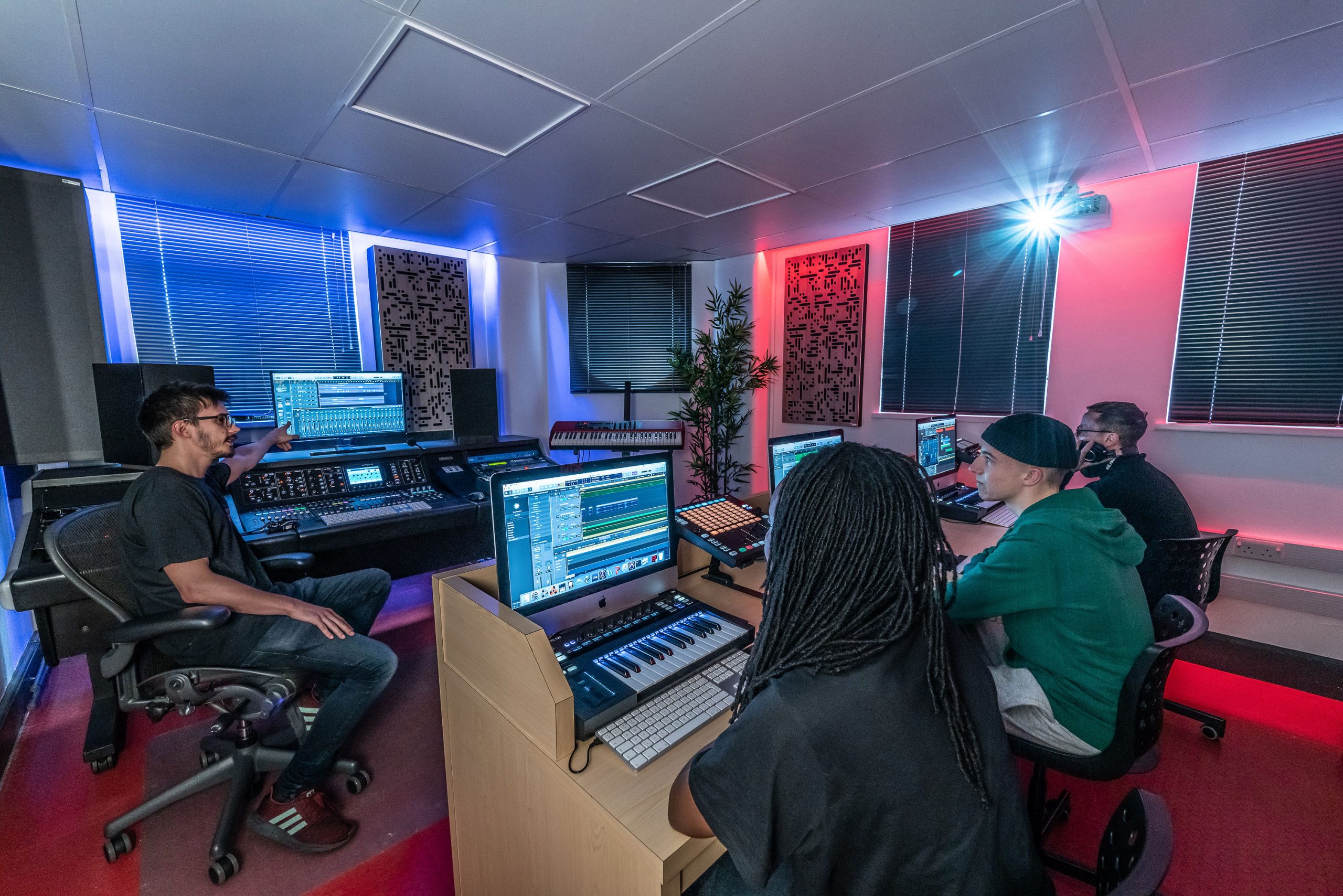

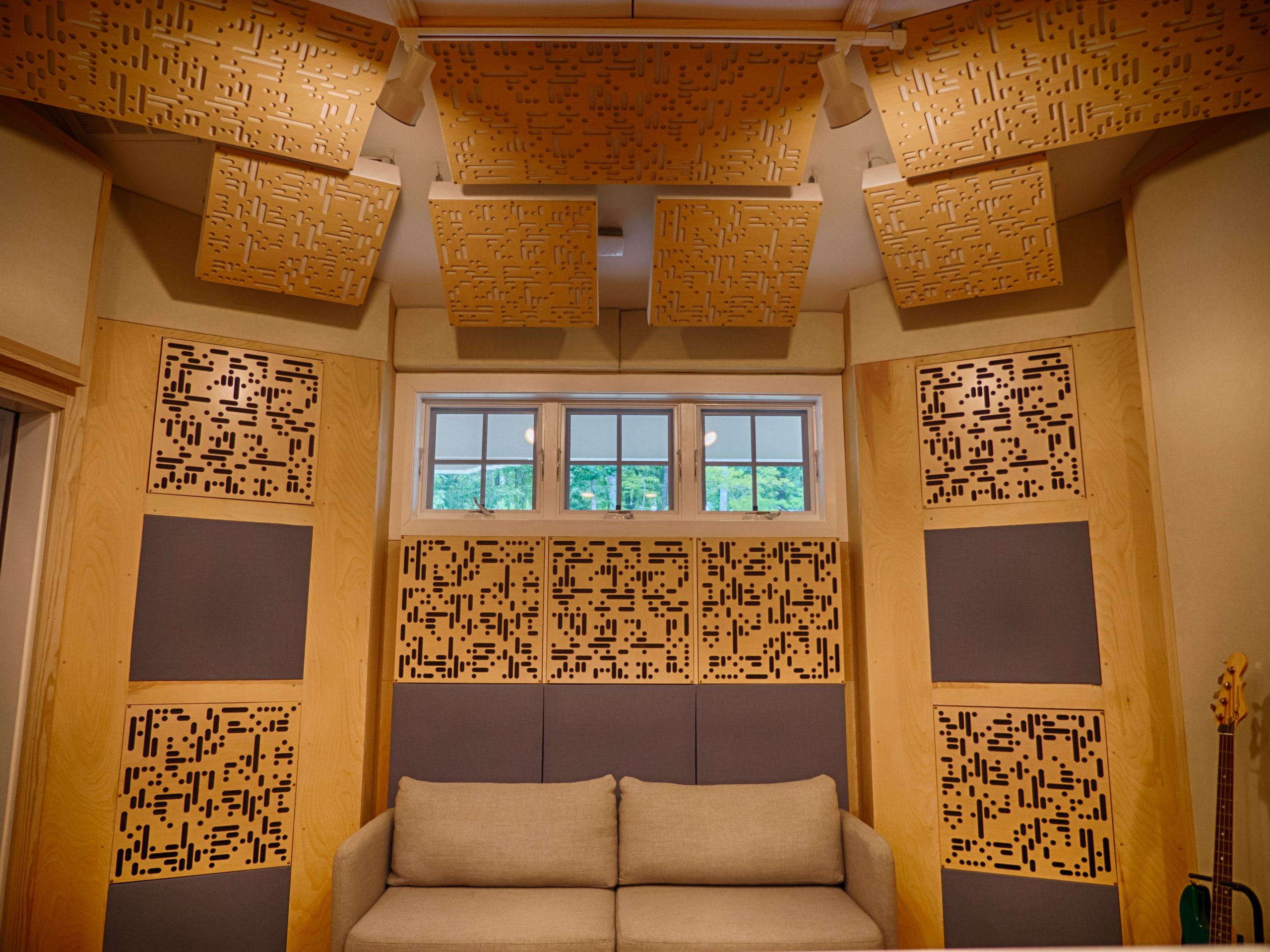

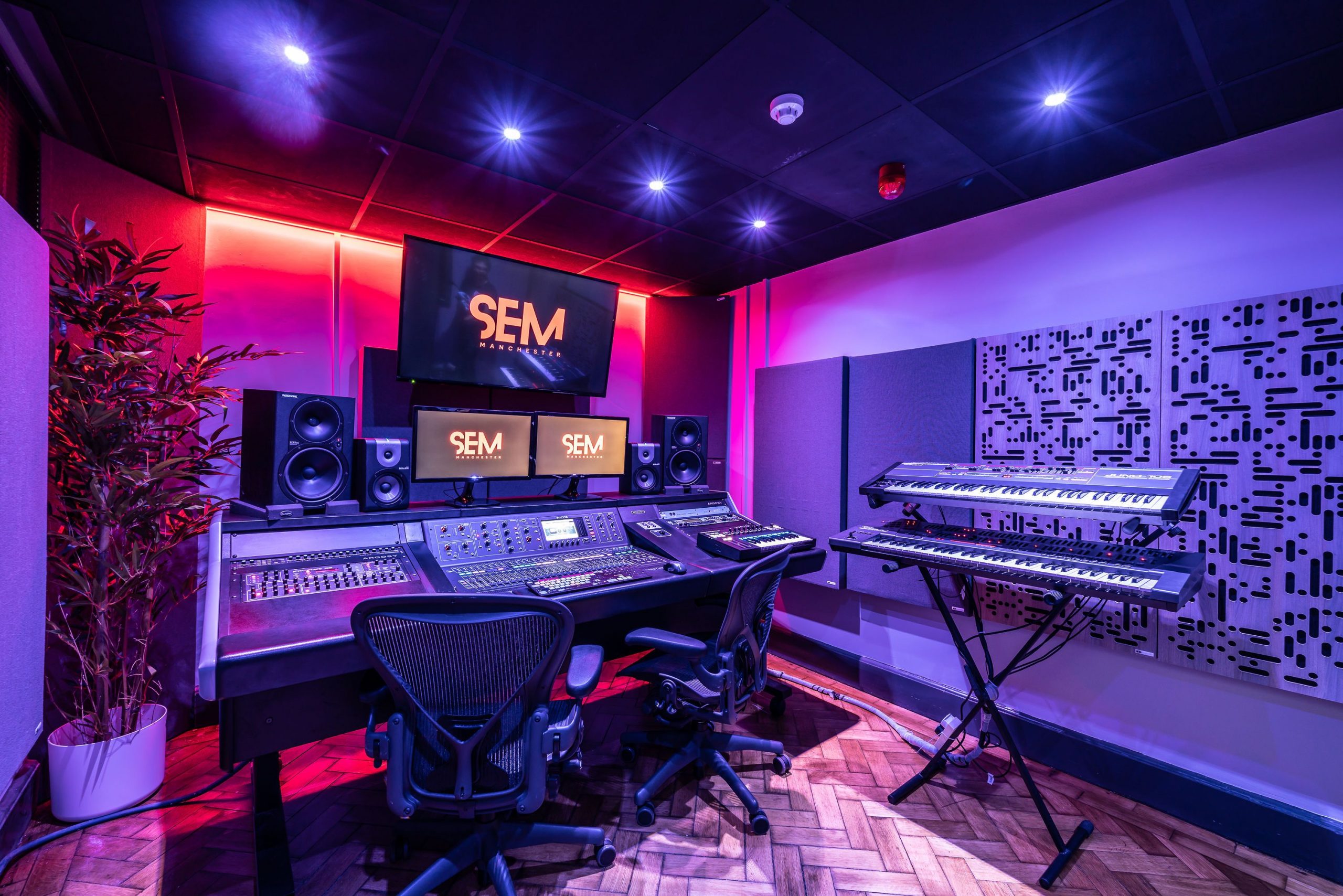

The 2A Alpha Panel can be used on the front or back walls and rear sidewalls to keep the reverberation better mixed and the room lively.
It can be utilized on the rear sidewalls or behind dipole speakers to round off sharp reflections.

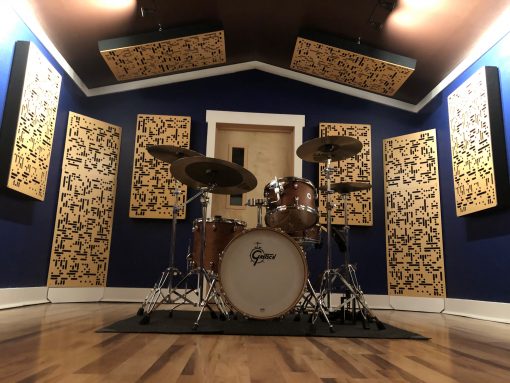

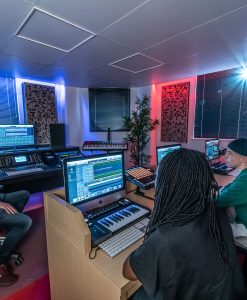

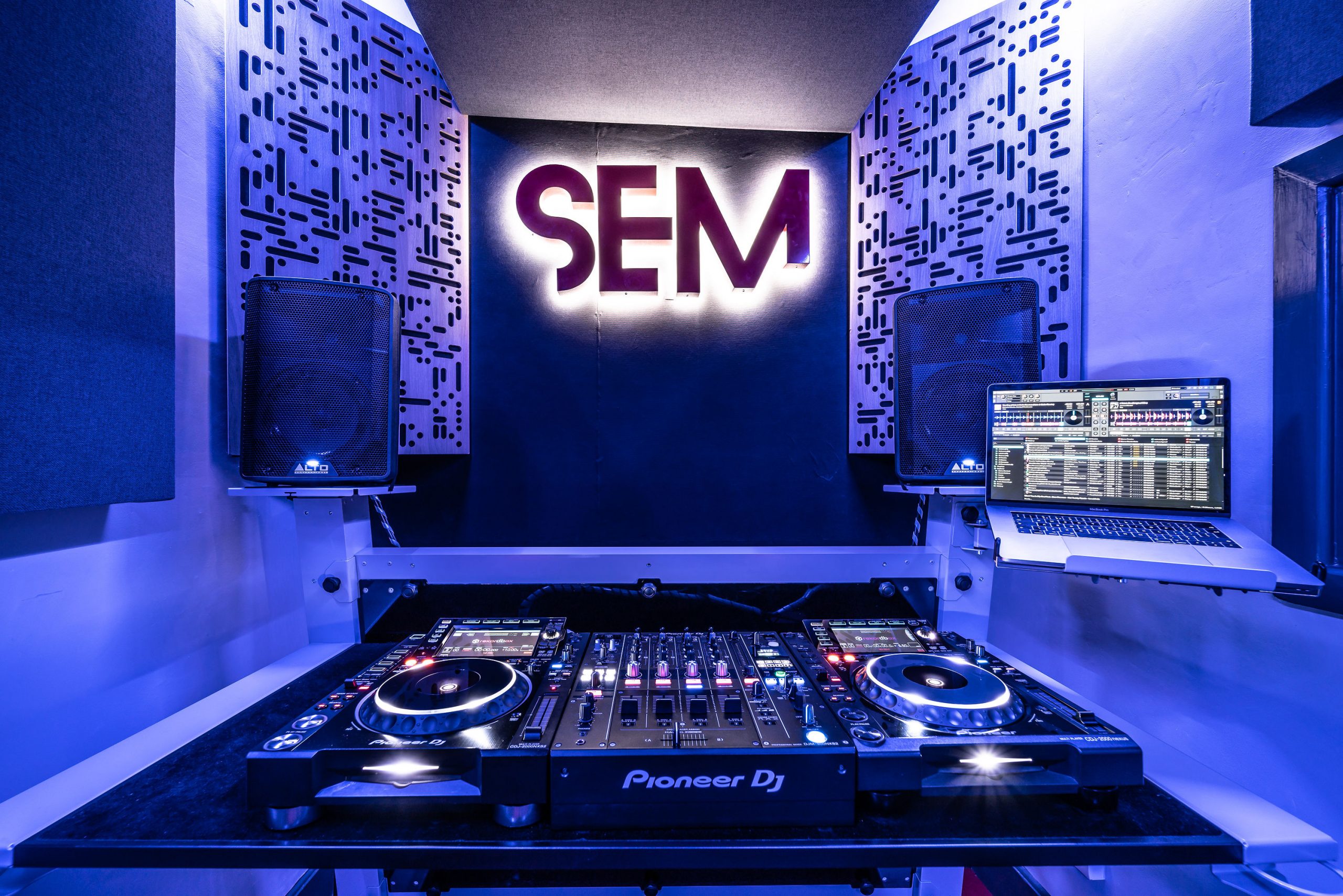

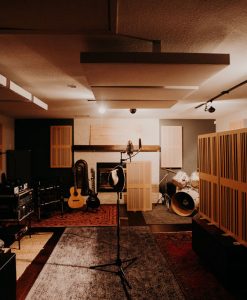

Anywhere in a tracking room or other large spaces, helping spread out the energy evenly across the whole room.

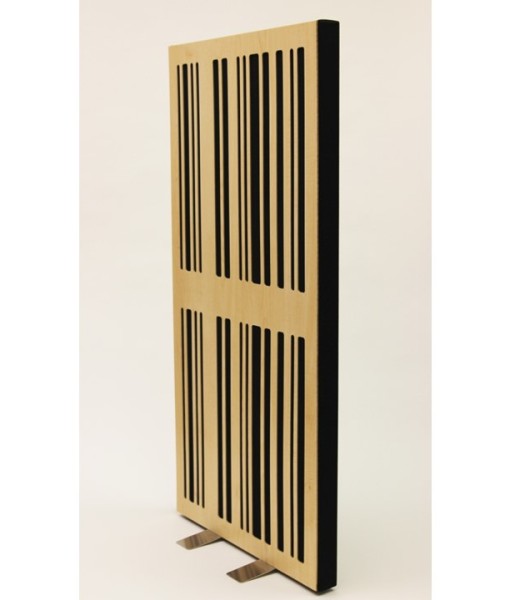

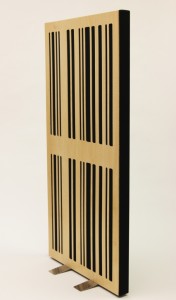

Add freestanding supports on rectangular (23″ x 45.5″) Alpha Panel and position the Alpha plate outward for diffusion or turn the fabric side outward for broadband absorption. Also allows for flexible placement in early reflection points or straddling corners as a bass trap.
Plates

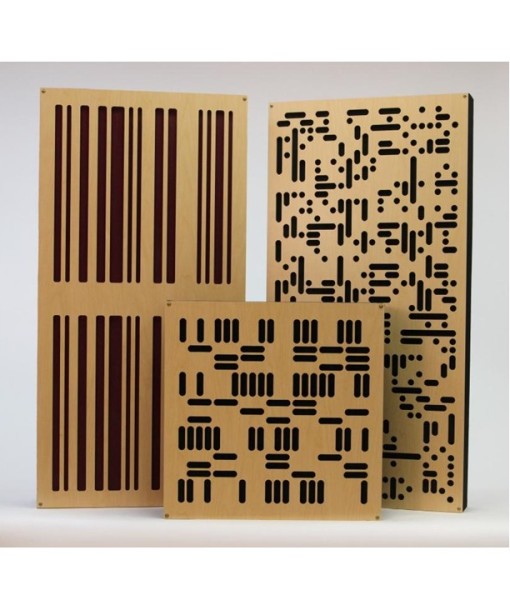

Pattern

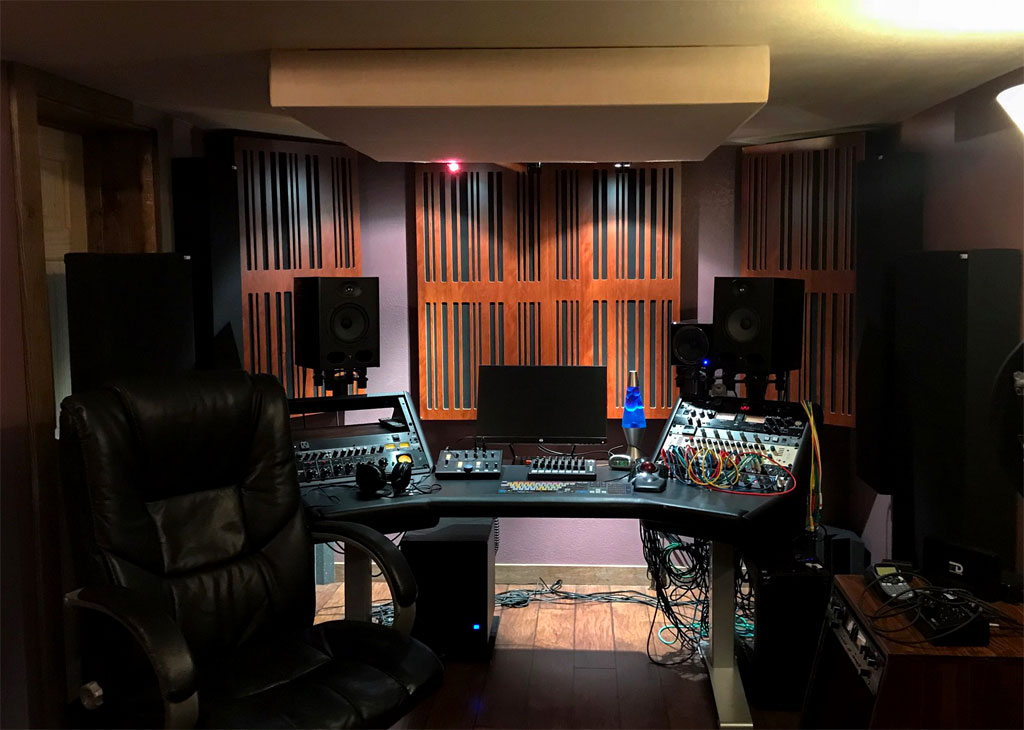

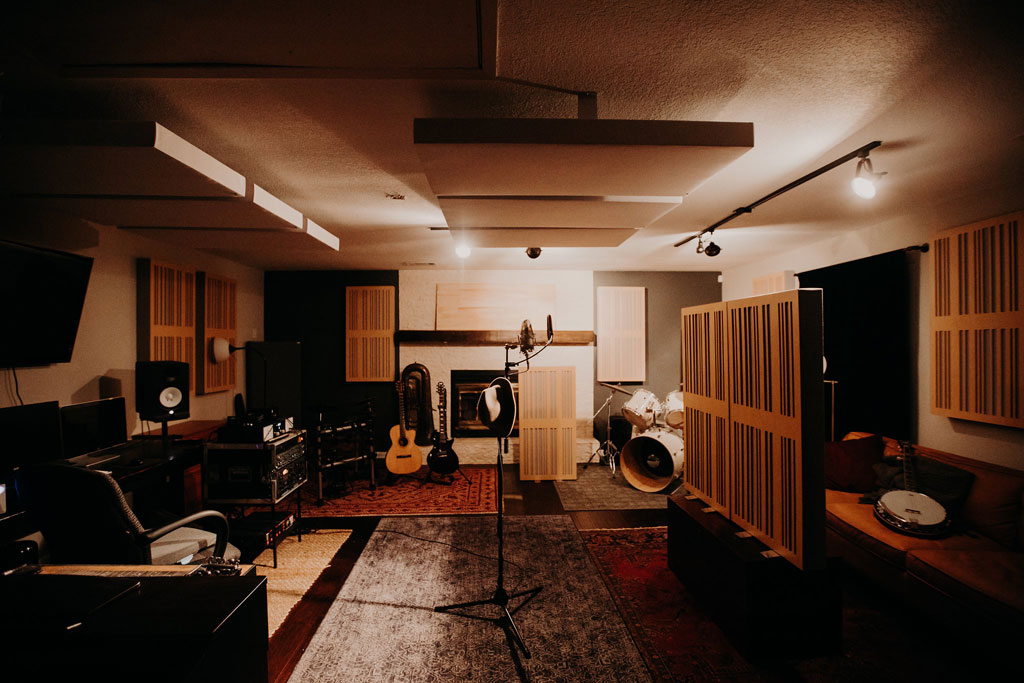

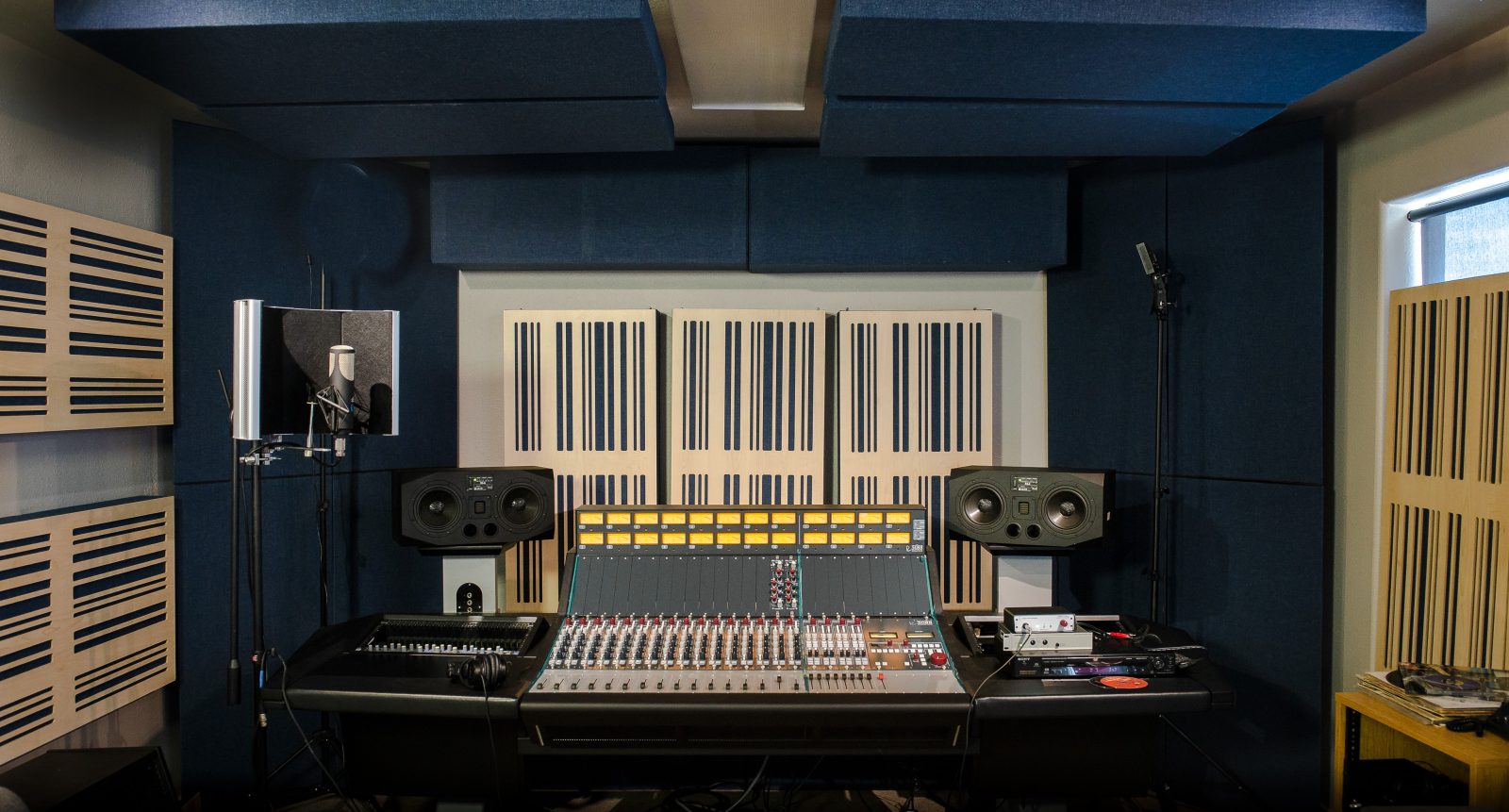

1D option

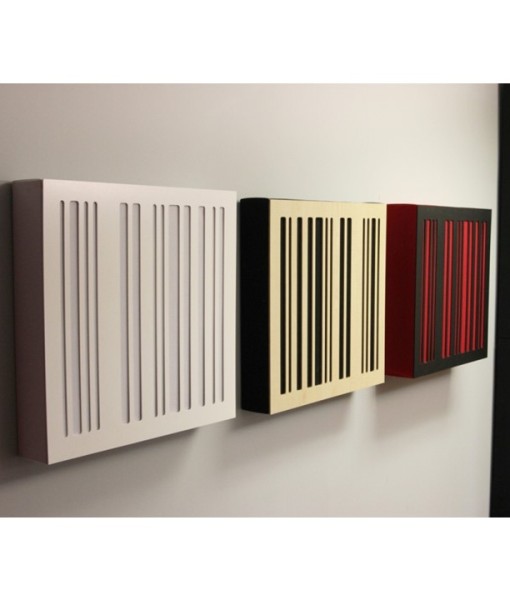

Uses a mathematical sequence in a column that extends the length of the panel. The vertical slats of the 1D allow sound energy to be scattered in a horizontal plane.

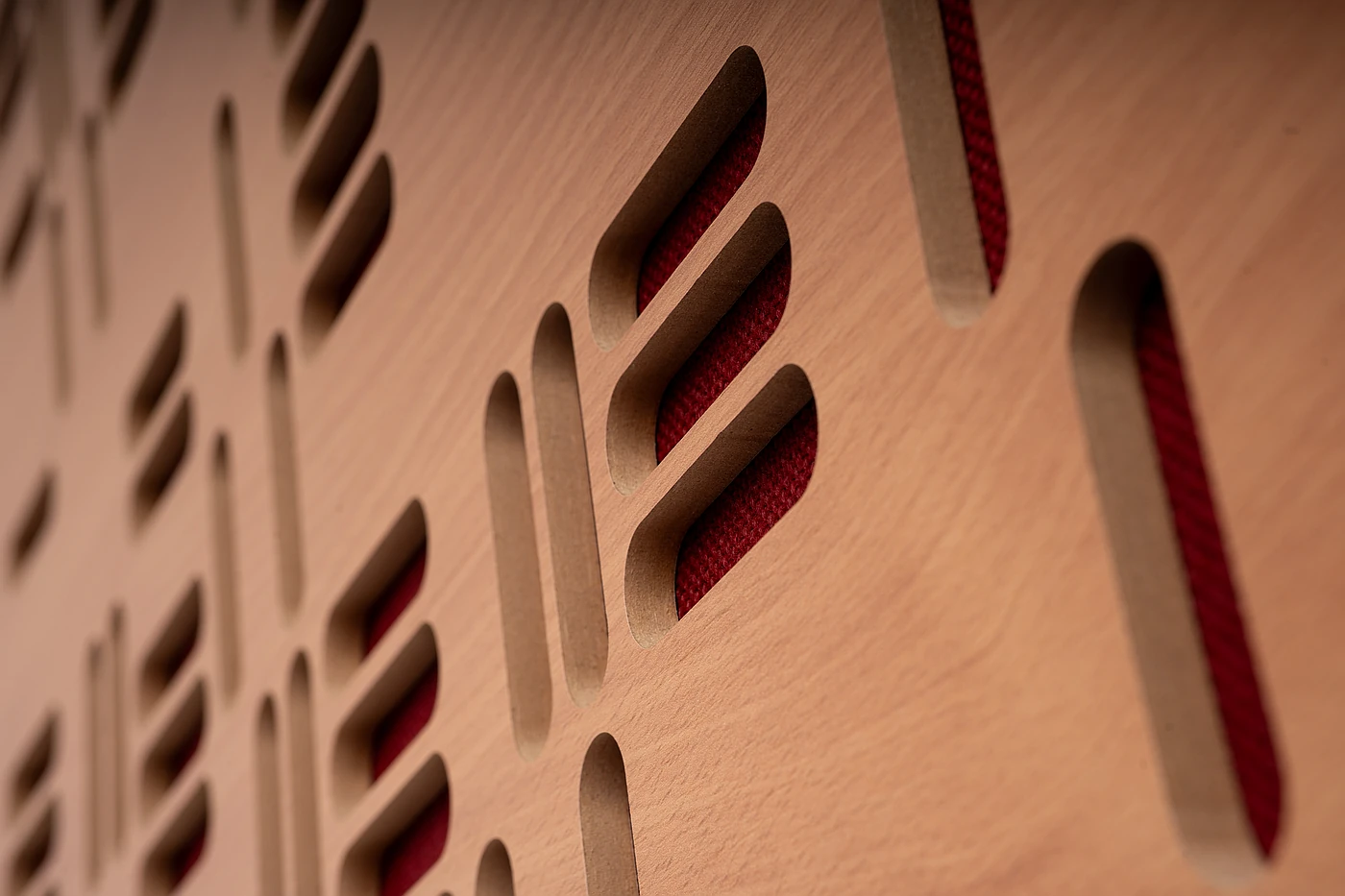

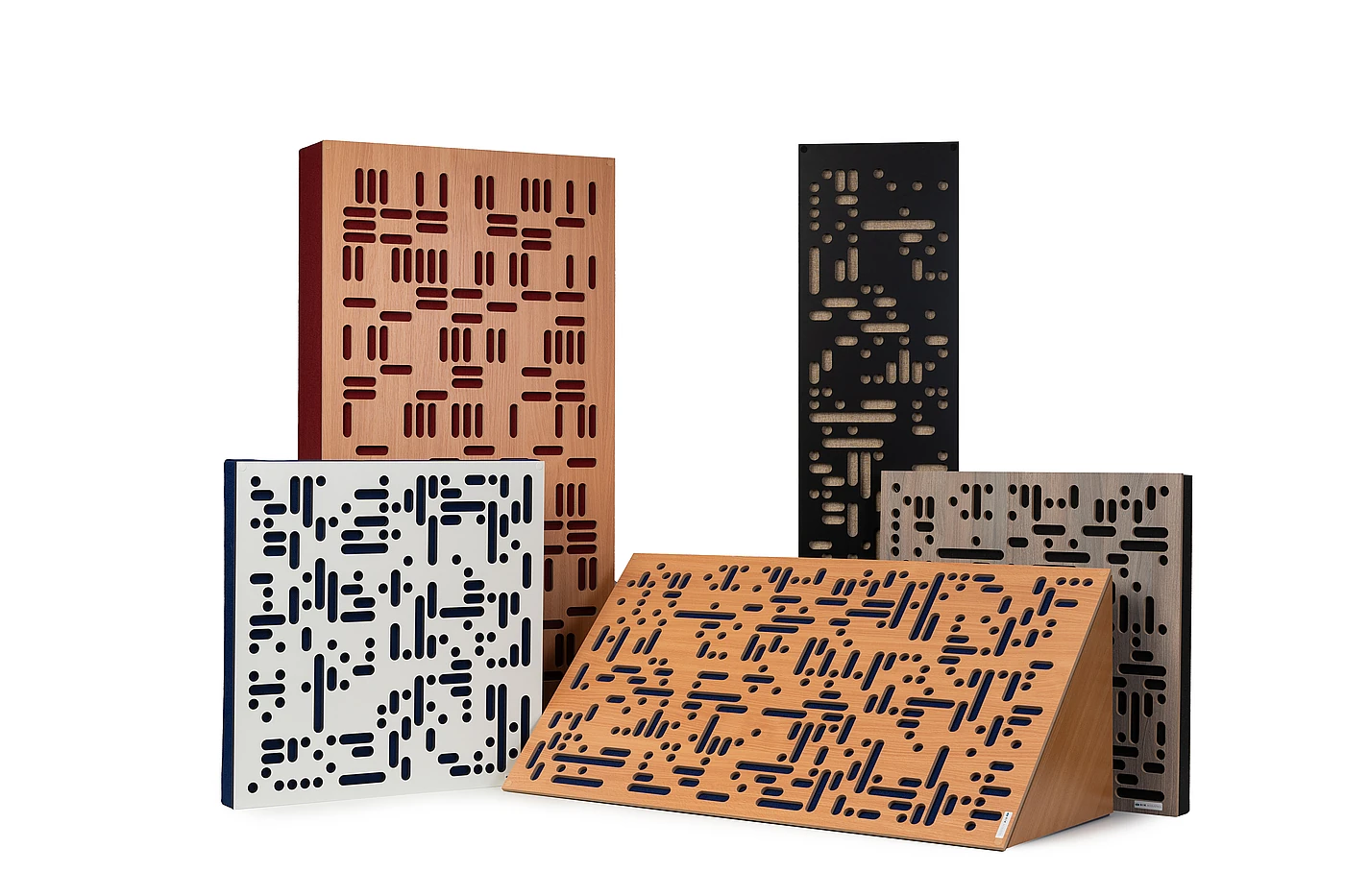

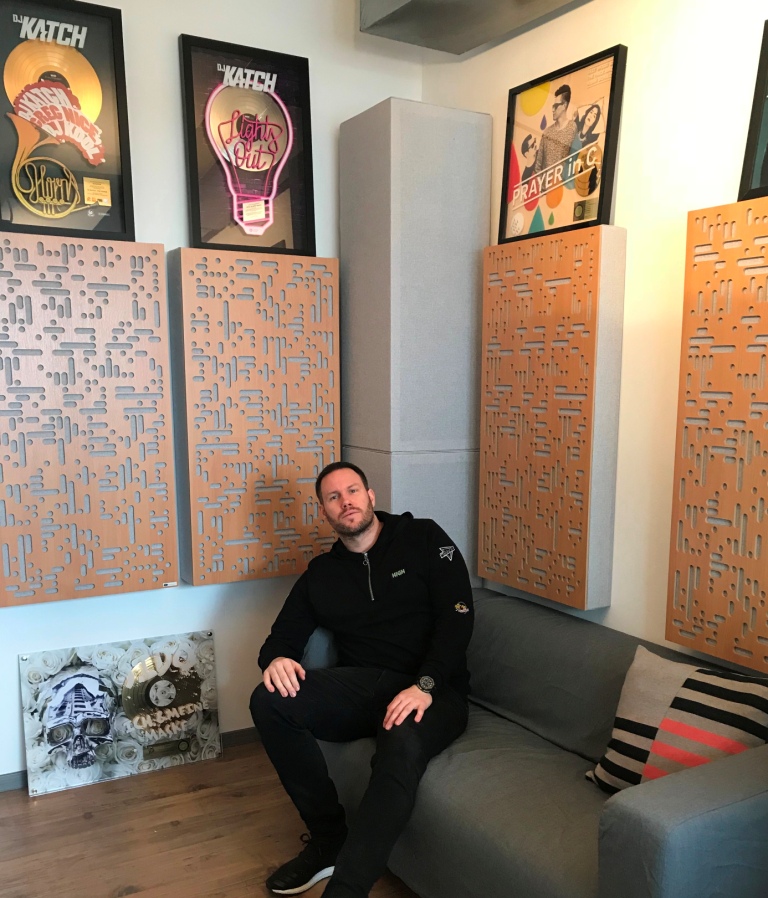

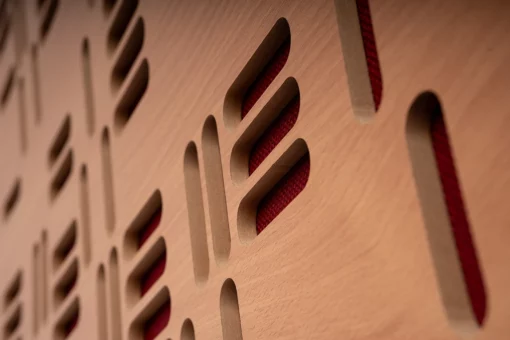

2D options

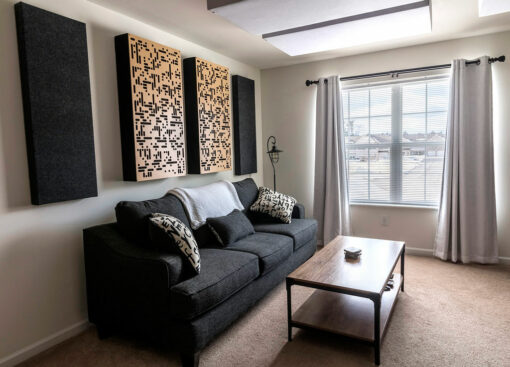

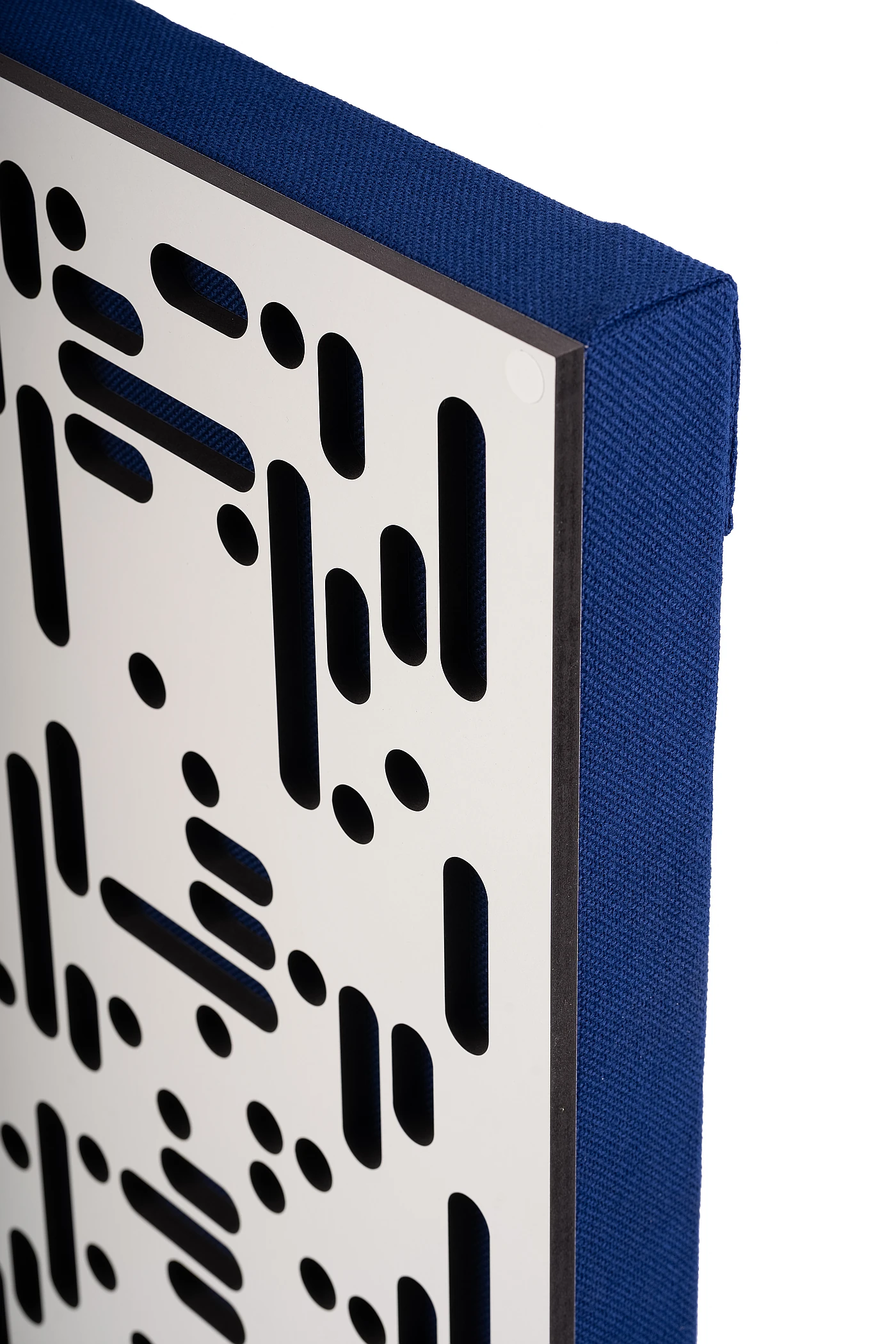

2D (a) has a pattern of dots and dashes
2D (b) has a pattern of dashes
Uses a sequence of columns and rows with variable spacing that provides horizontal and vertical scattering of sound. Additional $20 each for Square panels and $30 each for Rectangle panels.
