Product Description

Ceiling reflection points and ceilings in general are excellent places for diffusion. If, however, you have a drop tile ceiling, it’s difficult to hang anything from it. Drop ceilings can also provide a bit too much upper-, mid- and high-frequency absorption. We have a solution for you: the GIK Acoustics GridFusor.

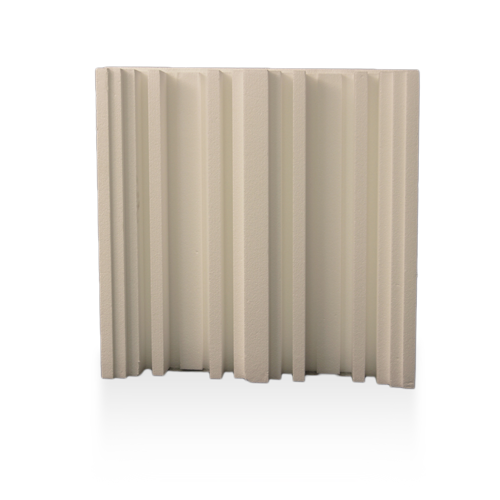

The GridFusor is specially designed to be a direct drop in replacement for any standard 2′ x 2′ ceiling tile.  Two GridFusors will also easily fit into a standard 4′ x 4′ grid opening.

Incorporating a mirror-imaged pair of 13-root diffusors, the GridFusor provides excellent diffusion from 600 Hz to 5,000 Hz and additional scattering below and above the diffusion range. The GridFusor is light enough that no additional support is required for your existing ceiling grid and it’s light enough that insulation above can still provide broadband bass control.

If your room is a bit too dry due to carpeted floors and acoustic tile ceilings, the GridFusor is a perfect solution. Stop having your hands tied when it comes to dealing with room acoustics where a drop tile ceiling is required.

Although the GridFusor is designed to work in a drop ceiling situation, it can also be used other places in your room as required. It is easily mounted with adhesive, double sided tape, or even pins depending on your situation and desired permanence.

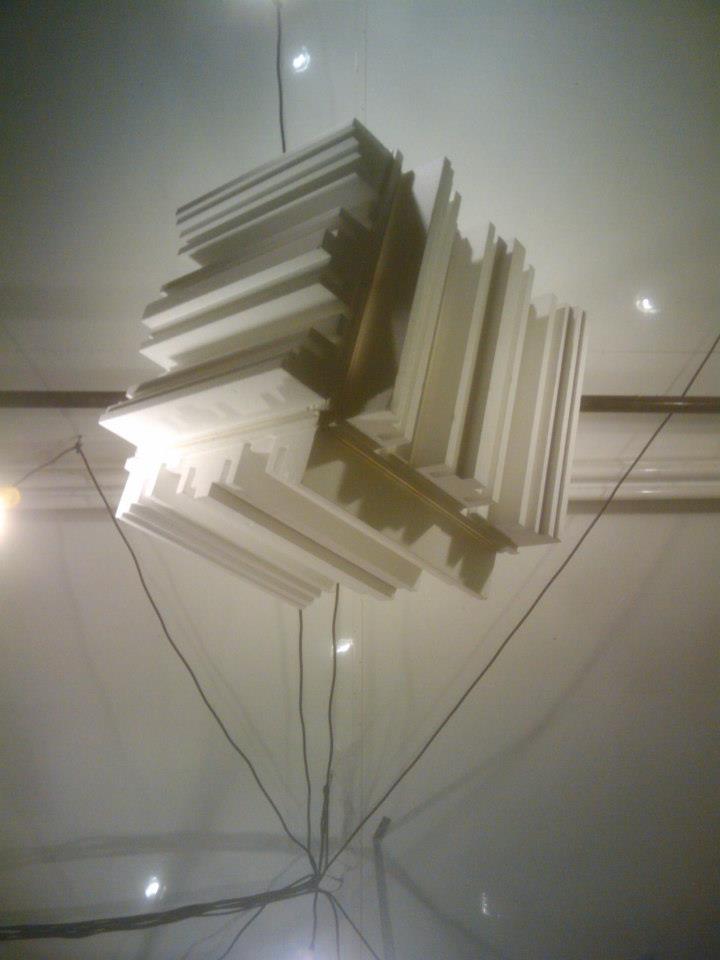

Green Studios utilizes GridFusors

Features:

• Thirteen-root QRD diffusor design
• Easily paintable (water-based paint only). Painting will have no impact on diffusion characteristics.
• Square shape allows for easy orientation changes to scatter in multiple axis.
• Easy to install

Video

Room Acoustics, The Basics: Bass Traps, Acoustic Panels, Diffusion

This video explores the basics of room acoustics. Most of us use existing rooms such as bedrooms, living rooms or basements for a listening space versus high end recording studios that are designed with acoustics in mind. However there are ways to treat average-sized rooms to be utilized as control rooms, home theaters or two-channel listening rooms.

How Diffusion Works

Diffusors are used to treat sound imperfections in rooms such as echoes and are an excellent complement to sound absorption because they do not remove sound energy. In this video we’ll examine How Diffusion Works.
