Q7D Diffuser

Name: Q7D Diffuser
SKU: Q7D
Price: 499.99 USD
Availability: InStock

$499.99

The new Q7D Diffusers are now available!

The stunning GIK Acoustics Q7D Diffuser is a classic in high-end recording studios as well as 2-channel listening rooms.
Featuring a wide range and even diffusion the Q7D is the perfect choice to balance your room and even out harsh reflections.

Pre-order colors usually ship within 2-4 weeks.

Q7D Diffuser
Option*
Save $50 on pre-order colors!
Total
$0.00

Subtotal
Options
Total

Add to Wishlist

OVERVIEW

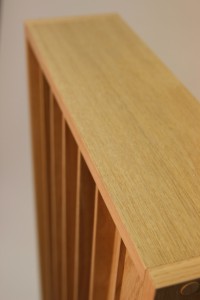

Our Q7D Diffuser are made using high quality wood laminates which are cut using CNC machines allowing for extremely tight and repeatable tolerances for an excellent fit and finish at an extremely competitive price.

The 7-root well design is scattering from approx 350 Hz and offering effective and even diffusion up through 3 kHz, with additional scattering to the upper limit of approximately 7 kHz. It is also built to be hung in mirror imaged pairs to cover a larger area without repeating the well pattern to avoid lobing.

The Q7D offers a wide variety of placement options from rear wall, reflection points, or behind dipole / bipole speakers to address specific situations. It can also be used in more general places behind the listening position or on larger, empty wall surfaces to minimize slap echo.

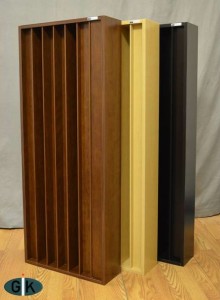

The Q7D Diffuser looks as good as it performs and is available 4 unique finishes: Woodland, Sand, Midnight, or Blizzard.
Developed for professional use it is equally suited in at home in a home studio or listening room as it is in a professional studio, editing room or auditorium. The beautiful wood veneer options add the feeling of warmth and class to any room.

FEATURES

All wood, 7-root well diffusor
Available in Sand (darker than Blonde), Walnut (Brown), Midnight (Black) or Snow (White)
Size: 19.7″ x 45.9″ (6.22″ deep)
Weight: 39 lbs

INSTALLATION

Each Q7d Diffusor comes with a pair of heavy-duty sawtooth hangers for easy and stable wall mounting.

Tiki Recording Studio with GIK Acoustics Q7D Diffusors

The Q7d Diffusor looks as good as it performs and is available in three finishes: Woodland, Sand, and Midnight.

Room Acoustics, The Basics: Bass Traps, Acoustic Panels, Diffusion

This video explores the basics of room acoustics. Most of us use existing rooms such as bedrooms, living rooms or basements for a listening space versus high end recording studios that are designed with acoustics in mind. However there are ways to treat average-sized rooms to be utilized as control rooms, home theaters or two-channel listening rooms.

First Reflection Points

If you’ve spent any time looking for information about treating your space, chances are you’ve run across the term “early reflection point”, “First Reflection Points” or “mirror point”. These are just semi-technical terms used to describe a phenomenon common to all enclosed spaces no matter what size: that the direct sound from the loudspeakers will arrive at the listener’s ears before the reflected sound does. This video explains finding and treating First Reflection Points.

Comparison Tool

Compare:

Effective Range:

Thickness:

wdt_ID	Products	Lowest Freq.	Thickness	Absorber	Diffuser	Bass Control	Wall Mountable	Backing Type	Mounting Hardware	Free Standing	Fits in Corners	Variety of Sizes	Custom Sizes	Fire-Rated	Stocked Fabrics	Finishes	Patterns
1	Best Sellers
2	242 Acoustic Panel	250	3.625"	✓	w/ Scatter Plate		✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
3	244 Bass Trap w/ FlexRange Technology	80	5.5"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
4	244 Bass Trap w/FRT with Range Limiter	75 Hz to 400	5.5"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
5	Monster Bass Trap w/FRT	70	7.7"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
6	Monster Bass Trap w/FRT with Range Limiter	60 Hz to 400	7.7"	✓	w/ Scatter Plate	✓	✓	Air Gap	Eye-hooks	Stands Available		✓	✓	✓	24
7	Tri-Trap Corner Bass Trap©	50		✓	w/ Scatter Plate	✓		n/a	n/a	✓	✓		✓	✓	24	5	n/a
8
9	Absorbers
10	Spot Panel	300	2"	✓			✓	Hard-back	Sawtooth bars			✓	✓	✓	24
11	1" Acoustic Art Panel	400	1"	✓			✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
12	2" Acoustic Art Panel	300	2"	✓			✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
13	242 Acoustic Art Panel	250	3.625"	✓	w/ Scatter Plate		✓	Air Gap	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
14	4" Acoustic Art Panel	85	4"	✓	w/ Scatter Plate	✓	✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
15	6" Acoustic Art Panel	70	6"	✓	w/ Scatter Plate	✓	✓	Hard-back	Sawtooth bars	Stands Available		✓	✓	✓	Custom Artwork
16	DecoShapes - 1" Hexagon	400	1"	✓			✓	Hard-back	Sawtooth bars			✓		✓	24
17	DecoShapes - 2" Hexagon	300	2"	✓				Hard-back				✓		✓	24
18	2" Drop Ceiling Acoustic Panels	300	2"	✓			✓	Hard-back	Sawtooth bars			✓		✓	24
19	4" Drop Ceiling Acoustic Panels	85	4"	✓	w/ Scatter Plate		✓	Hard-back	Sawtooth bars			✓		✓	24
20	Soffit Bass Trap	40		✓	w/ Scatter Plate	✓	✓	n/a	n/a				✓	✓	24
21	Scopus Tuned Membrane Bass Trap (T100)	75 Hz – 135		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
22	Scopus Tuned MembraneBass Trap (T70)	55 Hz – 100		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
23	Scopus Tuned Membrane Bass Trap (T40)	30 Hz – 60		✓	✓	✓	✓	Hard-back	Sawtooth bars				✓	✓	24	5	15
24
25	Diffusers
26	Gotham N23 5" Quadratic Diffuser	650			✓		✓	n/a	Sawtooth bars							1
27	Q7d Diffusor	650			✓		✓	Hard-back	Sawtooth bars	✓						4
28	GridFusor	1000			✓		✓	n/a	n/a							1
29	Evolution PolyFusor	150		✓	✓	✓	✓	Hard-back	Sawtooth bars			✓	✓	✓	24	5	n/a
30
31	Alpha Series
32	2A Alpha Series - (Foam-Based)	350	2"	✓	✓		Glue	n/a	n/a							5	3
33	2A Alpha Pro Series	300	2"	✓	✓		✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
34	4A Alpha Pro Series	85	4"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
35	6A Alpha Pro Series	70	6"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	3
36	CT Alpha Pro Series Corner Bass Trap	50		✓	✓	✓	✓	n/a	n/a		✓		✓	✓	24	5	3
37
38	Impression Series
39	2" Impression Series - (Foam-Based)	350	2"	✓	✓		Glue	n/a	n/a							5	11
40	2" Impression Pro Series	300	2"	✓	✓		✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
41	4" Impression Pro Series	85	4"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
42	6" Impression Pro Series	70	6"	✓	✓	✓	✓	Muslin or fabric	Sawtooth bars	Stands Available		✓		✓	24	5	12
43	CT Impression Pro Series Corner Bass Trap	50		✓	✓	✓	✓	n/a	n/a		✓		✓	✓	24	5	12
44
45	Vocal Booths / GOBO's
46	PIB (Portable Isolation Booth)	n/a		✓	✓			Front-plate	Wooden suport, hooks	✓			✓	✓	Upcharge	5	15
47	VISO Booth (Vocal ISOlation Booth)	n/a		✓				Front-plate	Stand extender				✓	✓	1	1	1
48	Freestand Acoustic Panel	200		✓				Covered	Metal feet	✓			✓	✓	24
49	Freestand Bass Trap	100		✓		✓		Covered	Metal feet	✓			✓	✓	24
50	Screen Panel	n/a		✓				Covered	n/a	✓			✓	✓	24

The GIK Difference

There’s a difference between a GIK Acoustics product and all others on the market.

The U.S. Patent & Trademark Office issued utility patent US 9,091,060 for GIK’s unique, proprietary design of its acoustic absorbers. The patent covers the design and construction of GIK Acoustics’ 242 Acoustic Panels, 244 Bass Traps with FlexRange Technology, and Monster Bass Traps with FlexRange Technology.

In addition to our patent, we separate ourselves from other acoustic treatment manufacturers in 6 primary areas

quality

GIK Acoustics products are beyond simple do-it-yourself panels that are found on the market today. We start with only the highest-quality materials that will not sag or leak over time, then we build every panel by hand employing a unique two-frame system.

Unlike other companies who use inexpensive materials, GIK Acoustics panels are crafted with quality insulation material, fabrics and hardwood plywoods. We start with absorptive insulation material that is intended for room acoustics – not cheap mineral wool whose main purpose is to insulate a ship’s engine room.

We then use carefully selected hardwood plywoods – not cheap imports – to construct our frames. The difference and chief advantage is dimensional stability. Crossbanded layers and balanced construction mean that hardwood plywood won’t shrink, swell or warp as much as lumber. To finish our panels we offer an array of fine fabrics – from our standard 9 options to the full line of Guilford of Maine panel fabrics.

GIK Acoustics products are not only Greensafe, but they carry a Class A fire rating which means we continue to provide our clients with the safest most effective products available. The Class A fire rating means that GIK Acoustics treatments have received the highest rating possible under the ASTM E84, a test used by code officials and regulatory agencies in the acceptance of interior finish materials.

Our team of professional builders handcraft each acoustic panel, bass trap and diffusor to exacting standards ensuring the most attractive, effective and dependable products. The difference is our customers are secure in knowing they receive the very best made-to-order acoustic treatments available.

value

Dollar for dollar, GIK Acoustics’ products absorb more sabins (sound) than any other product on the market. We provide our customers the most cost effective solution to make every space sound it’s best.

GIK Acoustics Panels are tested and certified by the Riverbank Acoustical Laboratories (RAL) to provide the most accurate information on the results you can expect when you purchase our products.

Our exceptional cost-to-benefit ratio means our customers do not over-buy or over-treat a room to get results.

Innovation

Over the past 10 years, GIK Acoustics has pioneered a number of acoustic treatments that you can’t find anywhere else. From the Tri-Trap Corner Bass Trap© to our Soffit Bass Trap© to the built in Scatter Plate, GIK continues to innovate.

After a year of research & development, in 2013 we introduced FlexRange Technology – our unique, proprietary system for providing the best in bass trapping and low end absorption.

In 2015 we launched the Alpha Series, a line of acoustic panels and bass traps with a wood face which has a mathematical sequence of slots for one-dimensional scattering / diffusion. The Alpha Series literally changes the face of acoustic panels and bass traps by beautifully combining absorption with diffusion and enhancing any room both aesthetically and acoustically with superior quality, high-performing, and stylish room treatments.

GIK Acoustics is also proud to have launched creative, unique products such as: the multifunctional PIB (Portable Isolation Booth), the decorative and effective Impression Series, and the striking, precise Gotham N23 5″ Quadratic Skyline Diffusor.

We are constantly innovating, so look for more solutions and creative treatments from GIK Acoustics.

Helpful Support Staff

Customer satisfaction is our number one priority at GIK Acoustics.

We start by helping customers determine the best products to treat their space with our free, expert Acoustic Advice. Our well-respected design team has years of experience and are available to provide assistance not only with product selection but product placement within your room.

In addition to providing knowledgeable recommendations, GIK Acoustics maintains contact throughout the order process. Our trained Customer Service team ensures quality, timely delivery and reliability. And our staff is available to help with special needs or custom orders.

The GIK Acoustics difference is we assist with everything from product inquiries to custom orders to delivery notifications to satisfaction follow ups. We guarantee it.

Informative

When it comes to improving the sound quality in a room, many find the science to be overwhelming and the task of DIY’ing acoustic treatments to be daunting. Our solutions are based on the science of acoustics and one of the key dynamics to our success lies in demystifying sound dynamics and room acoustics. We are firm believers in education and our website is full of Educational Articles and Videos. It’s long been our goal to help customers truly understand how sound behaves in a space and the importance and benefits of proper room treatment.

With our blog Acoustics & Audiogeekery, GIK Acoustics aims to explain what you’re hearing and how to improve your audio. Our blog is a resource and a repository of discussions and techniques in the quest to make better audio. Audio is interesting – whether you’re making music, mixing, or simply listening & enjoying – and manipulating technology to solve problems to improve audio is the essence of “audiogeekery.”

Environmental

It’s our commitment to use environmentally safe materials for all our products.We use ECOSE absorption material, eco-friendly wood and we offer customers recycled fabric options as well. Greensafe means GIK Acoustics products are friendlier on air quality, the environment, and your budget.
