Filter

SlatFusor 1S – 1″ Wood Slat Acoustic Panel / Diffuser

Name: SlatFusor 1S - 1" Wood Slat Acoustic Panel / Diffuser
SKU: SF-1S
Availability: InStock

Starting at $94.99 | sold individually

Modern Elegance with GIK Acoustics Performance

Elevate your space with the SlatFusor 1S from GIK Acoustics, where premium finishes, exceptional acoustic design, and unmatched versatility converge to blend timeless elegance with the acoustic performance only GIK Acoustics can offer.

• Available in 2 sizes: Rectangle (23.5″ x 45.5″) and Square (23.5″ x 23.5″)
• Total thickness: 1.75″ – effectively absorbs down to 200Hz
• Scatters mid & high frequency reflections
• Reduces noise, echoes & reverb without overdamping
• Combining wood slats on black felt with 1″ GIK Acoustics absorber
• 30% more effective than a standard 1″ absorbers
• Premium finish: furniture-grade, stainable Oak Veneer
• Seamless covering of the entire wall or use as individual panels
• Mounted with sawtooth hangers (included). No glue or adhesive needed.
• Delivered with normal shipping service. No freight forwarder required.

Sold individually.

Select Options & Buy ♥ Need help? Fill out our form and get free acoustic advice.

The Acoustic Wood Wall Panel

Finding the right balance between high and low frequencies is one of the toughest challenges in any space. This is where the SlatFusor 1S shines, a wood wall panel effortlessly combining acoustic performance with elegant design.

The SlatFusor 1S offers both a timeless design, as well as the exceptional performance that GIK Acoustics panels are known for.

The wooden slats scatter high-frequency sound waves, preserving your room’s brilliance. Behind these slats, a high-performance absorber steps in to control resonances in the low and mid-frequency ranges.

Performance You Can Trust

With an impressive 30% increase in effectiveness below 1000 Hz compared to conventional 1″ thick panels, the SlatFusor 1S redefines the control of echoes, reverberations and resonances.
It is the ultimate choice for those seeking both the aesthetics of natural wood and unparalleled acoustic performance in their environment.

Masterful Craftsmanship
Wood Wall Panel In Real Oak Veneer

A fusion of craftsmanship and exceptional acoustic design, the SlatFusor 1S comes in a premium, furniture-grade finish.
While the SlatFusor 1S exudes natural beauty with its natural oak veneer, the ability to stain the slats opens up endless possibilities.
A statement of sophistication that seamlessly complements any environment, whether you’re at home or in a professional studio.

Seamless Surfaces Timeless Design

The pioneering design of the SlatFusor 1S wood wall panel ensures that each individual slat panel can be effortlessly arranged on your wall, leaving no unseemly gaps. This meticulous attention to detail not only elevates the acoustic performance of your space but also enhances its visual appeal. A harmonious blend of form and function makes the SlatFusor 1S your perfect choice for acoustic wall paneling.

Specs

Core

Mineral wool provides twice the low-end absorption over similar foam-based products.

Design

Stainable oak veneer slats on a 1″ thick acoustic panel frame filled with eco-friendly, high-performance sound absorbing material, wrapped in black fabric.

Weight

Square = 9.5lbs

Rectangle = 19.5lbs

NRC

Classification: A

Construction

ECOSE® technology absorption material

Quality hand-made construction and craftsmanship

Standard Sizes

Square 23.5″23.5″

Rectangle 23.5″x45.5″

Suggested Placement

The SlatFusor is easily mounted on a wall using a sawtooth picture hanger (included).

A small felt overhang on one side allows the SlatFusors to hang without a gap.

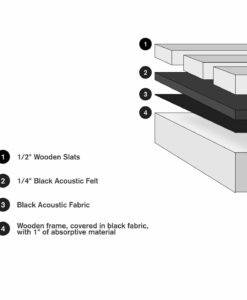

The unique design of the SlatFusor 1S consists of beautiful slats on a black, acoustically transparent felt layer, behind which is 1″ of high performance absorption material in a wood frame covered with black fabric.
