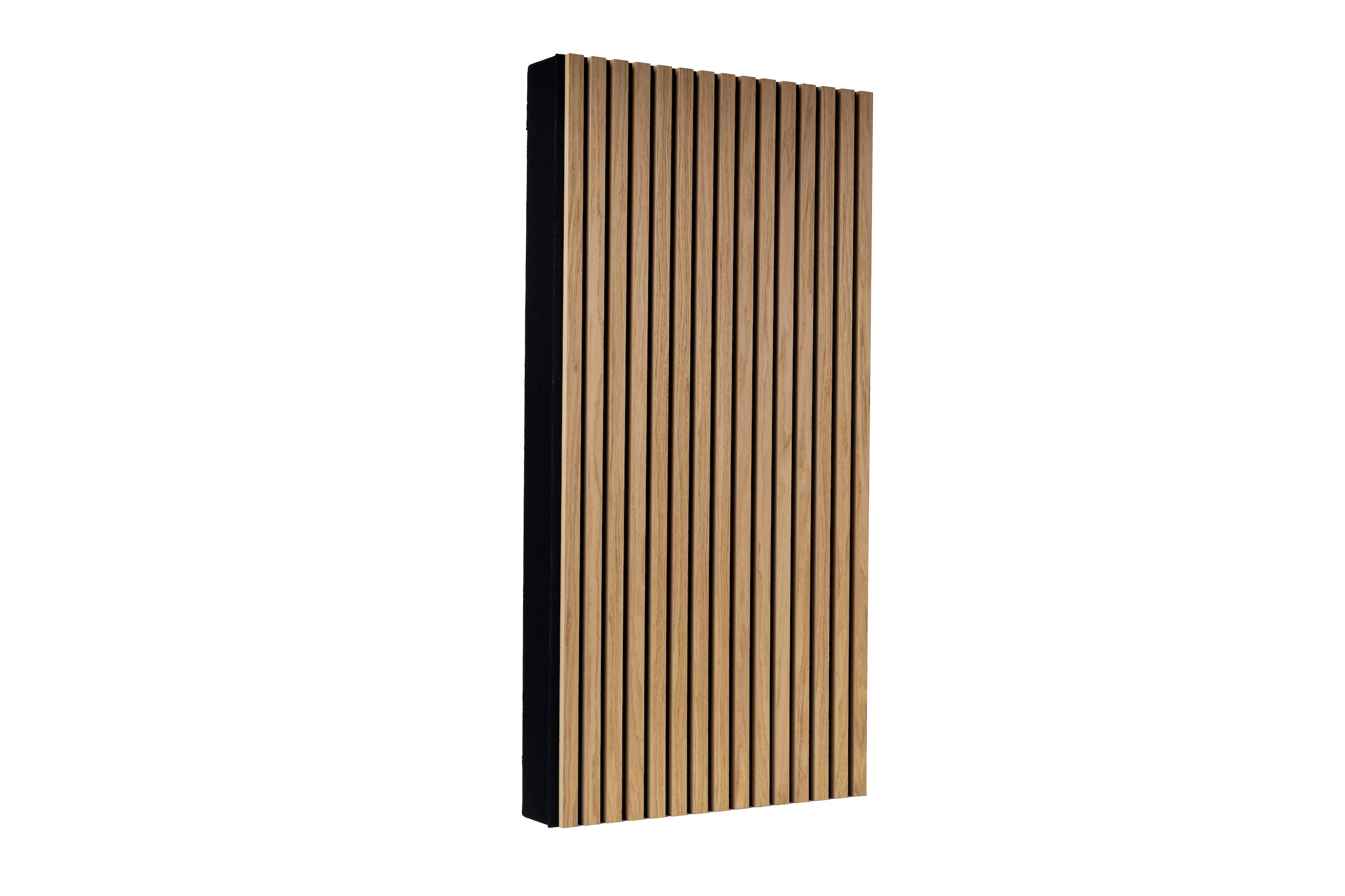

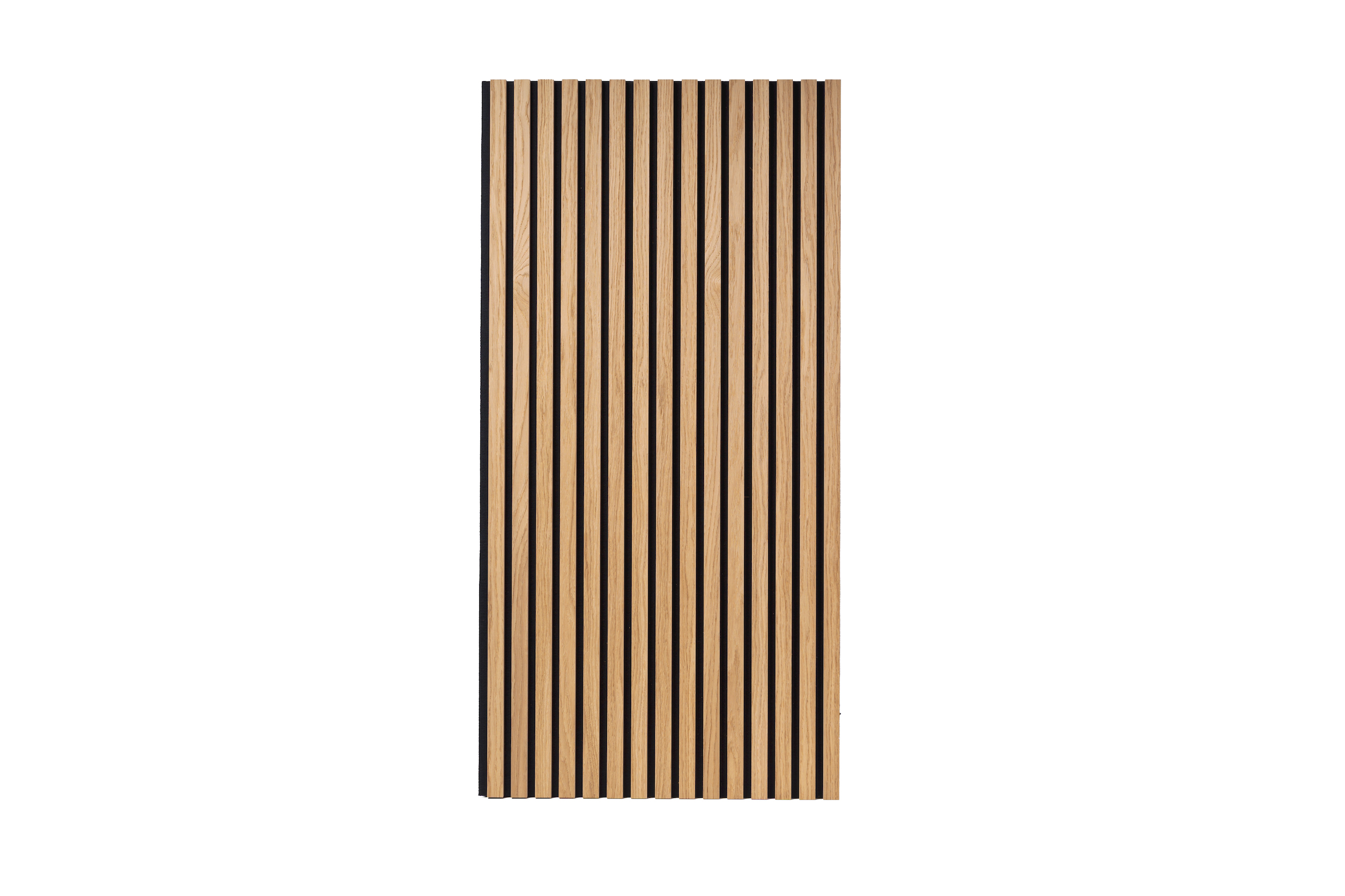

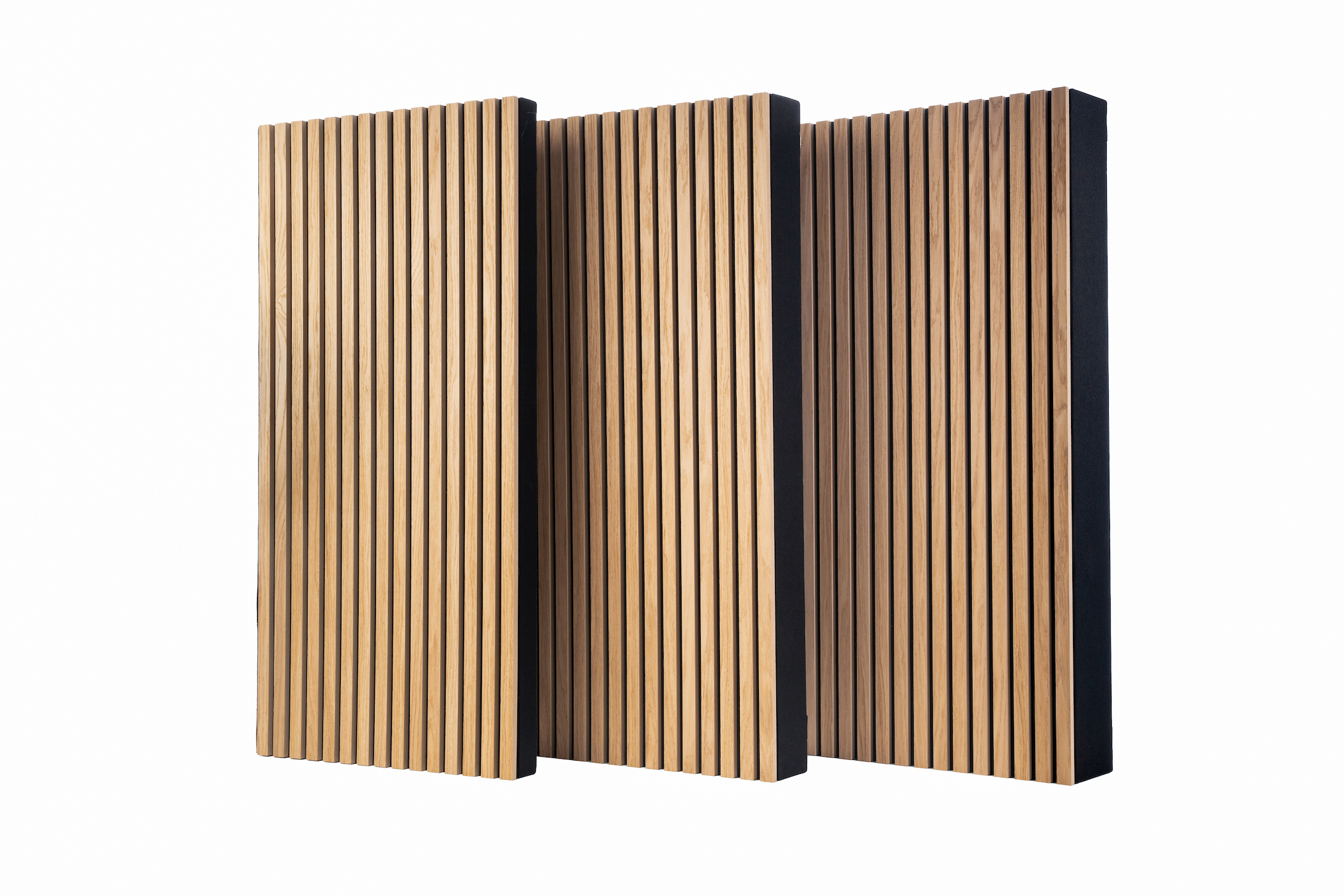

SlatFusor 4S – 4″ Wood Slat Bass Trap / Diffuser

Name: SlatFusor 4S - 4" Wood Slat Bass Trap / Diffuser
SKU: SF-4S
Availability: InStock

Starting at $124.99 | sold individually

Modern Elegance with GIK Acoustics Performance

Elevate your space with the SlatFusor 4S from GIK Acoustics, where premium finishes, exceptional design, and unmatched versatility converge to blend timeless elegance with the sonic performance only GIK Acoustics can offer.

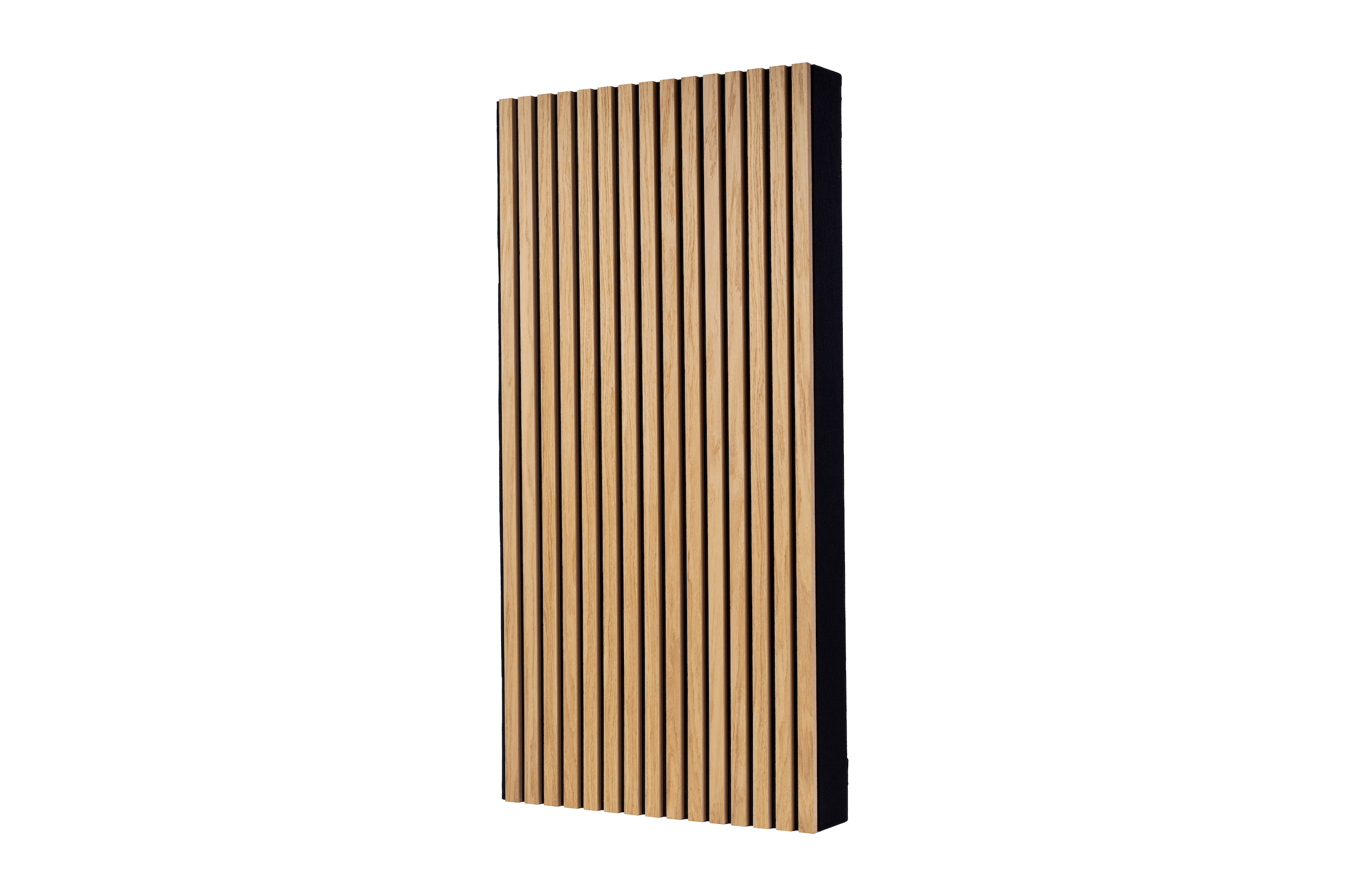

• Available in 2 sizes: Rectangle (23.5″ x 45.5″) and Square (23.5″ x 23.5″)
• Total thickness: 4.75″ – effectively absorbs down to 80Hz
• Scatters mid & high frequency reflections
• Combats bass buildup, reflections & resonances without overdamping
• Combining wood slats on black felt with a 4″ GIK Acoustics absorber
• Premium finish: furniture-grade, stainable Oak Veneer
• Seamless covering of the entire wall or use as individual panels
• Mounted with sawtooth hangers (included). No glue or adhesive needed.
• Delivered with normal shipping service. No freight forwarder required.

Sold individually.

Select Options & Buy ♥ Need help? Fill out our form and get free acoustic advice.

The Acoustic Wood Wall Panel

Finding the right balance between sonic performance and visual aesthetic is one of the toughest challenges in any space. This is where the SlatFusor 4S shines, a wood wall panel effortlessly combining acoustic performance with elegant design.

The SlatFusor 4S offers both a timeless design, as well as the exceptional sonic performance that GIK products are known for.

The wooden slats scatter high-frequency sound waves, preserving your room’s brilliance. Behind these slats, a high-performance absorber steps in to control resonances in the low and mid-frequency ranges.

Balance: Achieved

The SlatFusor 4S excels in combining the control of echoes & reverberations with effective absorption of low frequency resonances. It preserves the energy of mid and high frequencies and smooths out any inconsistencies in frequency response and decay times. The SlatFusor 4S is the optimal choice for those seeking a balanced listening environment with the aesthetics of natural wood and peerless sonic performance.

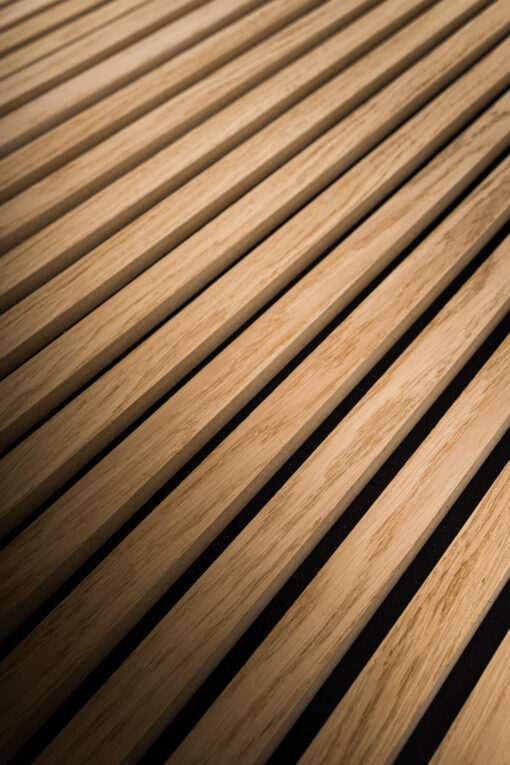

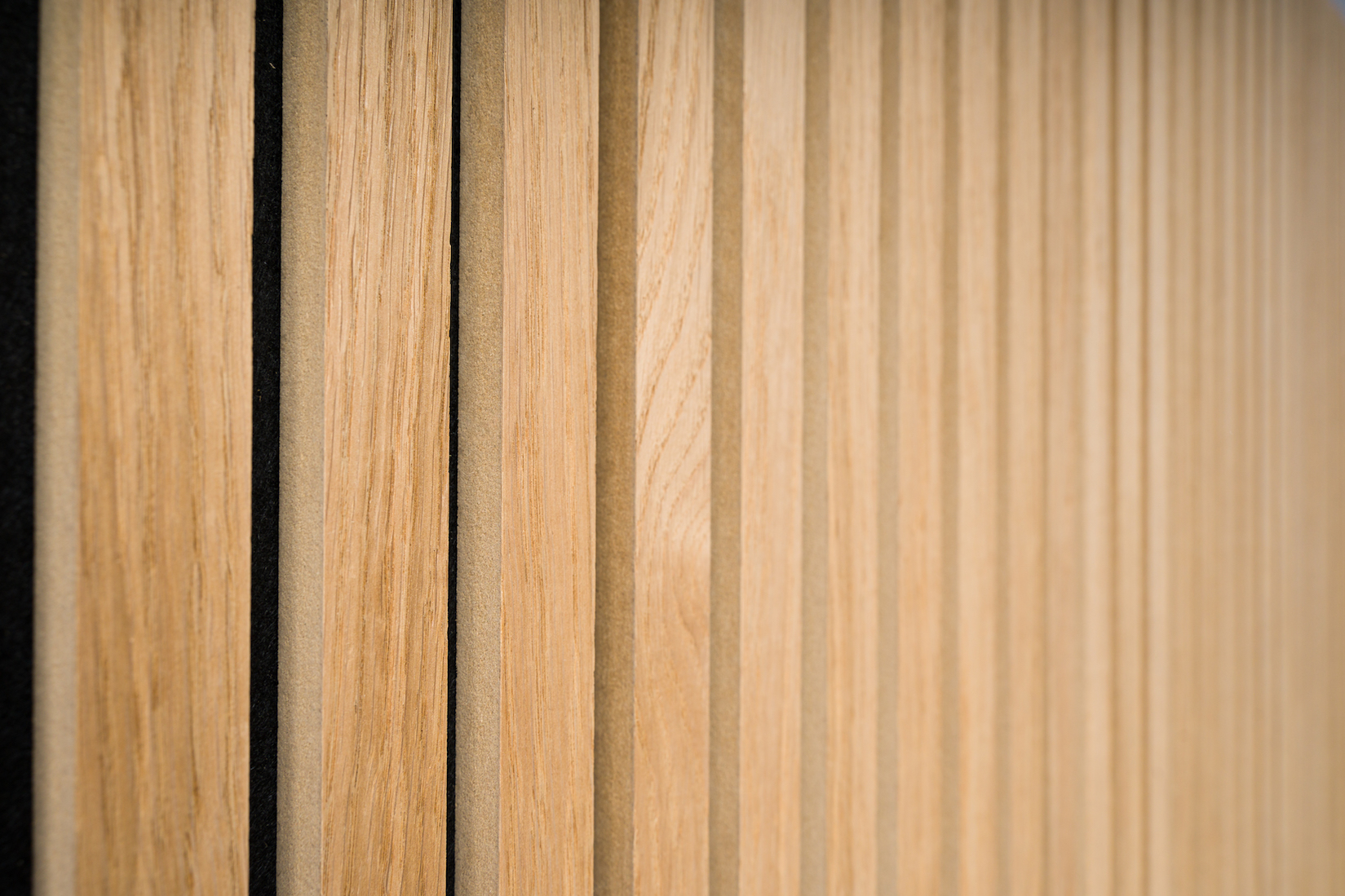

Masterful Craftsmanship in Real Oak Veneer

A fusion of craftsmanship and exceptional sonic design, SlatFusors are made with premium oak slats, looking great right out of the box. While the SlatFusors exude natural beauty with natural oak veneer, the ability to stain the slats opens up endless possibilities. SlatFusors are a statement of sophistication that seamlessly complements any environment, whether you’re at home or in a professional studio.

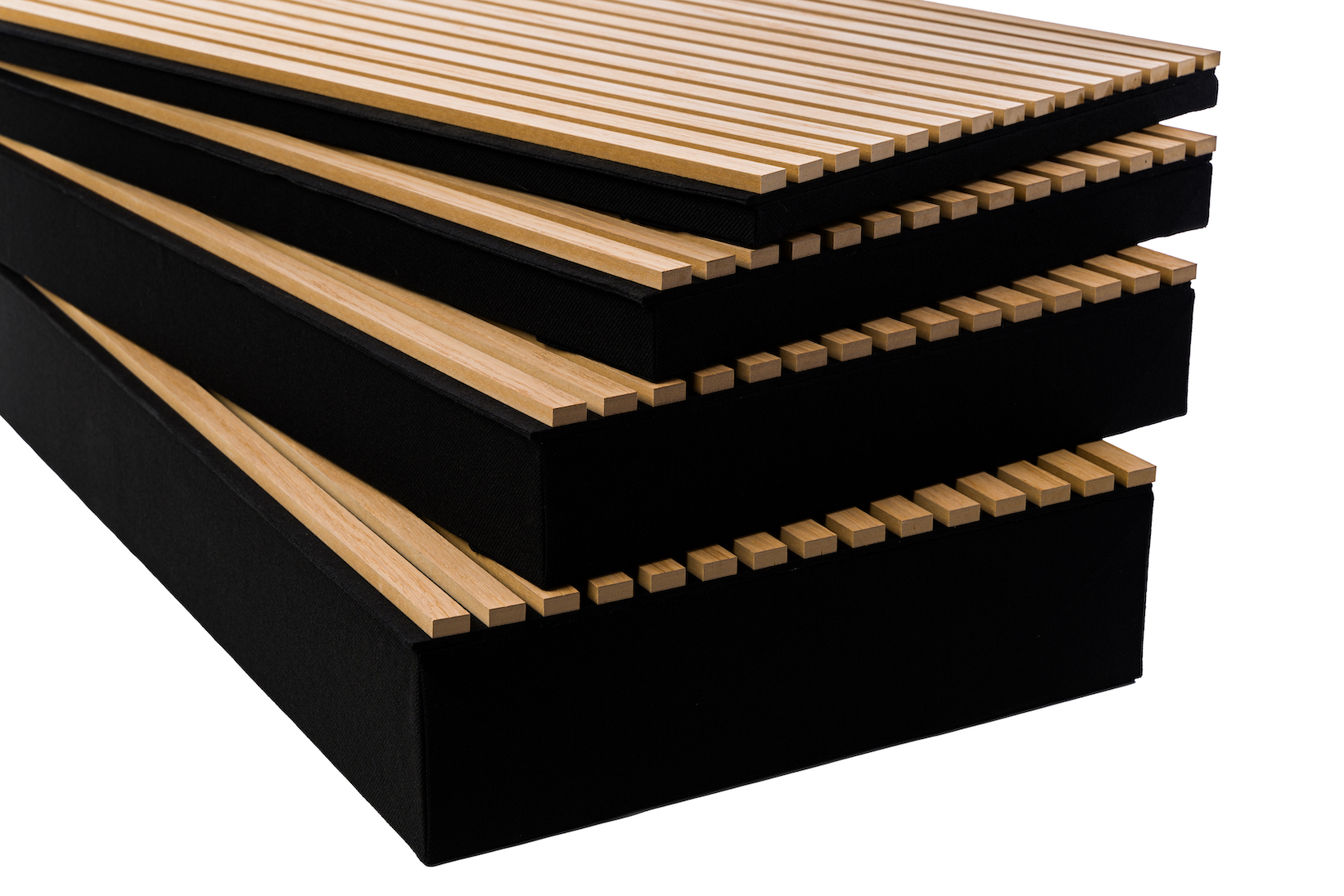

Seamless Surfaces, Timeless Design

The pioneering design of the SlatFusor 4S wood slat panel ensures that each individual slat panel can be effortlessly arranged on your wall, leaving no unseemly gaps. This meticulous attention to detail not only elevates the acoustic performance of your space but also enhances its visual appeal. A harmonious blend of form and function makes the SlatFusor 4S your perfect choice for wood wall paneling.

Specs

Core

Mineral wool provides twice the low-end absorption over similar foam-based products.

Design

Stainable oak veneer slats on a 4″ thick bass trap frame filled with eco-friendly, high-performance sound absorbing material, wrapped in black fabric.

Weight

Square = 14lbs

Rectangle = 24lbs

NRC

Classification: A

Construction

ECOSE® technology absorption material

Quality hand-made construction and craftsmanship

Standard Sizes

Square 23.5″23.5″

Rectangle 23.5″x45.5″

Suggested Placement

The SlatFusor is easily mounted on a wall using a sawtooth picture hanger (included).

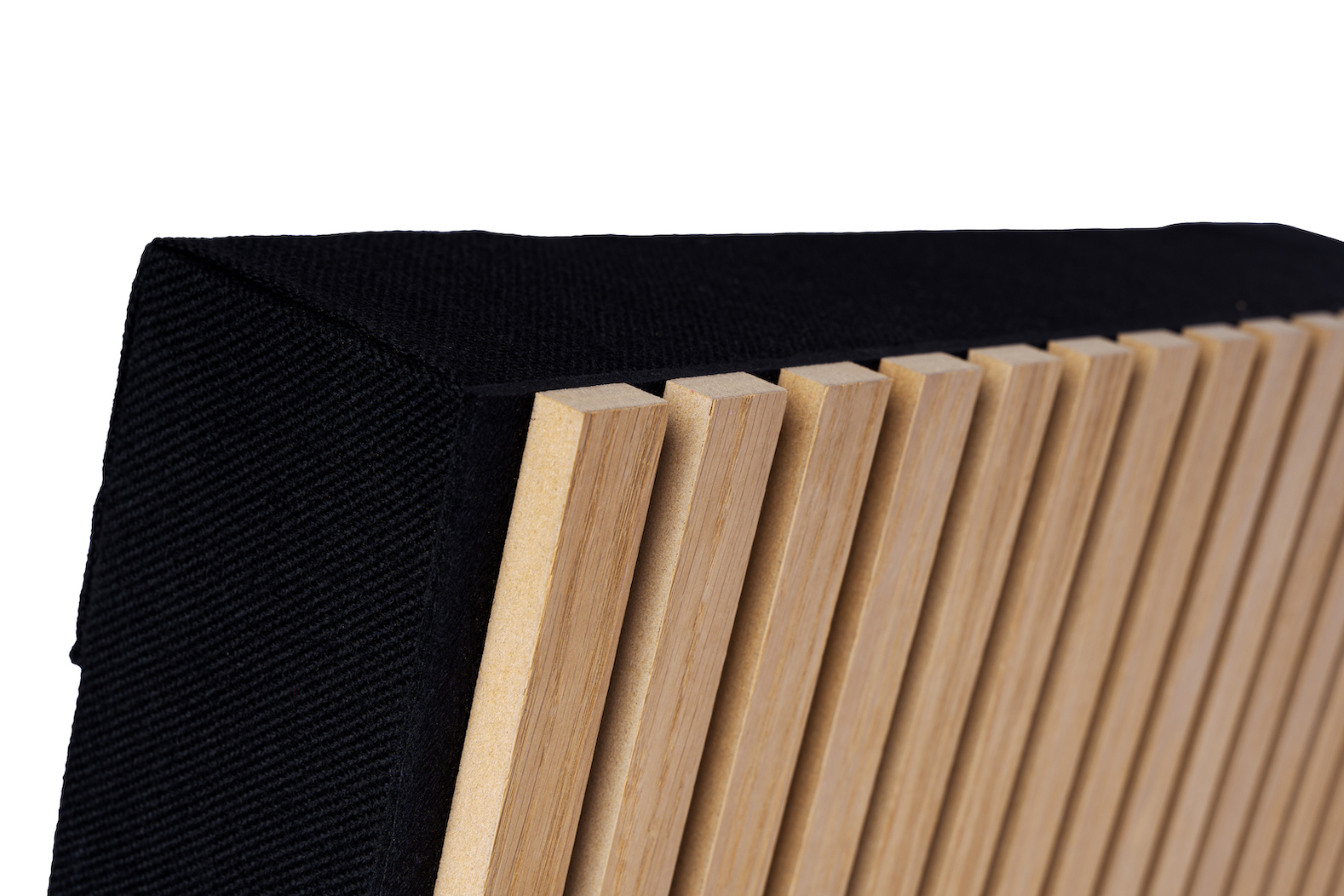

A small felt overhang on one side allows the SlatFusors to hang without a gap.

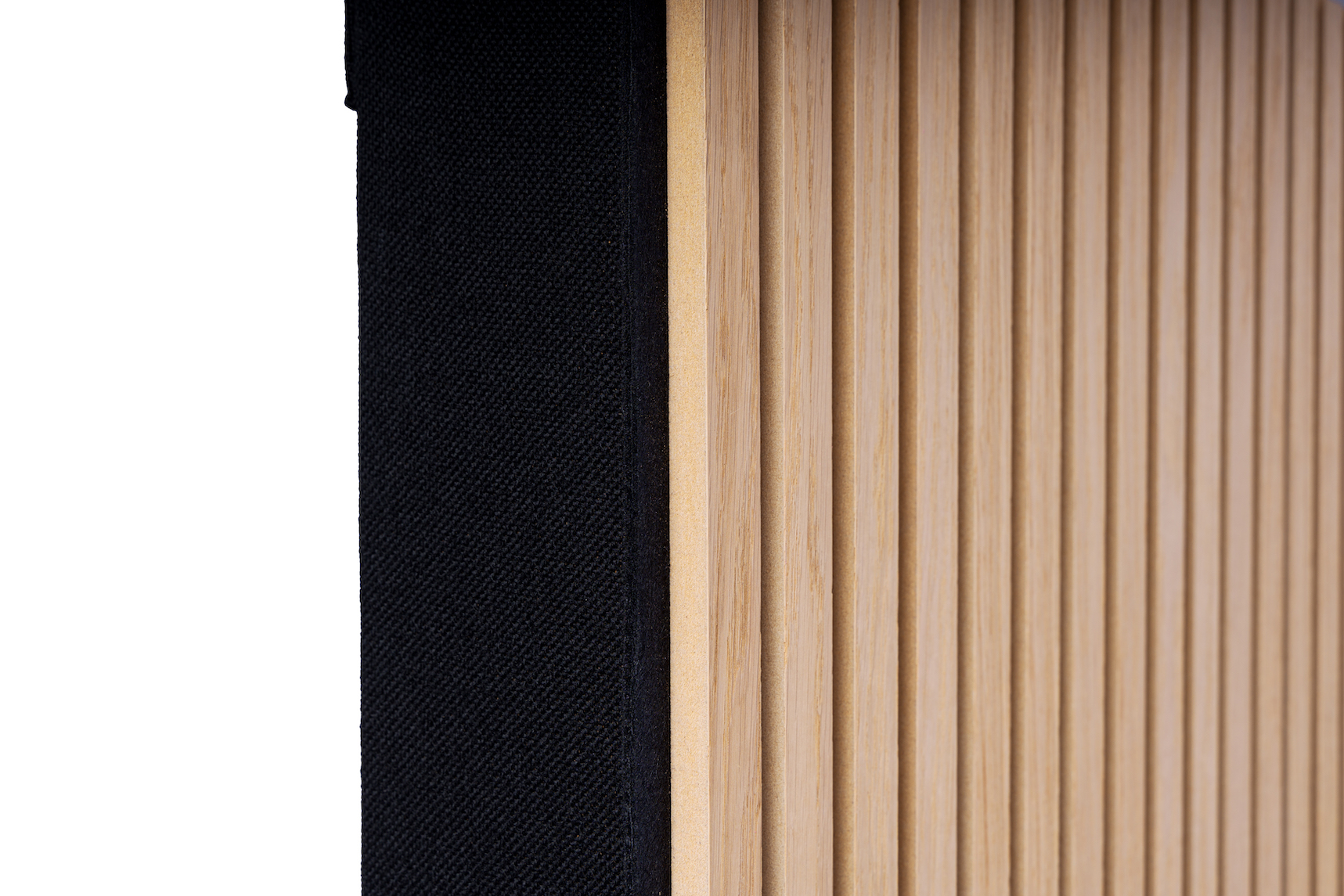

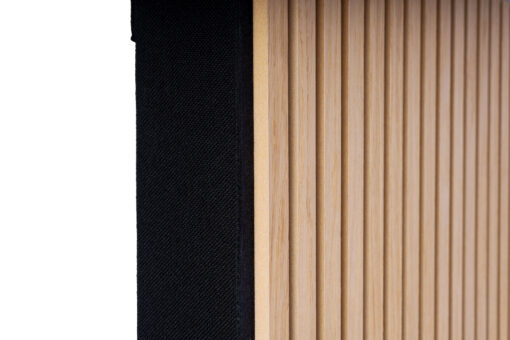

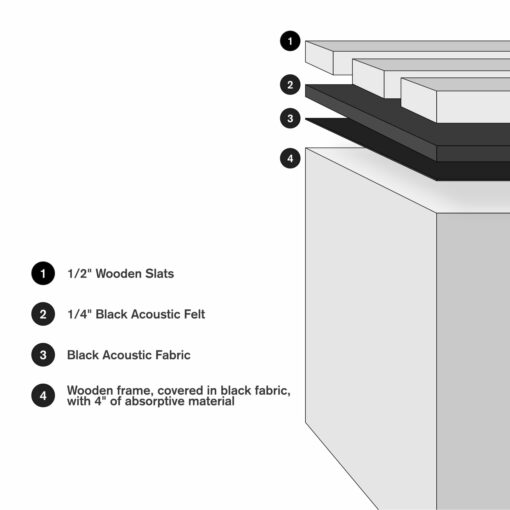

The unique design of the SlatFusor 4S consists of beautiful slats on a black, acoustically transparent felt layer, behind which is 4″ of high performance absorption material in a wood frame covered with black fabric.

GIK Acoustics 244 Bass Traps in Most Audio Post

“GIK Acoustics products do a remarkable job at creating a great, early-reflection free sweet spot for the engineer and controlling bass. The panels and bass traps have turned an acoustically challenging room into a perfectly workable listening environment.”

Ivo Witteveen / co-owner MOST Audio Post, Amsterdam

More Information and Articles

Designer Tips: The Significance of “Clouds” with Mike Major

When people reach out to us at GIK for acoustic advice, we never have any problem convincing people to put panels and diffusors on their wall and in their corners in [...]

06
Jun

Designer Tips: The Importance of Coverage Area with James Lindenschmidt

The most important factor in acoustic treatment performance is coverage area. Or more specifically, the total surface area of all treatments in a room, relative to the room’s size. This relationship [...]

26
May

Designer Tips: Home Theaters and Acoustic Balance with John Dykstra

Without fail, one of the first things our clients say to us when we begin talking about how we are going to treat their room is some iteration of “I don’t [...]

24
May

Speaker Placement: How far from the wall should I place my speakers?

There’s a lot of confusion surrounding speaker placement. In truth, the optimal speaker setup is based on things like room size and the specifications of the monitors. In this video, we [...]

24
Mar

Debunking Sound Diffusion Myths

There are many misconceptions about diffusion that can lead people astray when they go to treat their rooms. This video outlines some of the common mistakes people make when treating their [...]

12
Mar

Untreated Vs Treated Room

Check out these sound tests of our DEMO room. In this video we pull all the treatment out of the room to see how the frequency response changes as well as [...]

17
Feb

Tutorial: How to Treat a Mixing or Mastering Room

08
Jul

Tutorial: Hifi Listening Room Acoustics Setup

How to Set Up and Acoustically Treat a Hifi or 2-channel Listening Room How do I set up my listening room: Audiophiles can spend a small fortune on speakers and [...]

08
Jul

View the full pdf file for A mount HERE.
View the full pdf file for J mount HERE.

GIK Acoustic Panels are tested and certified by the Riverbank Acoustical Laboratories (RAL) Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method ASTM C 423-02/NVLAP 08/P03 GIK Acoustics panels submitted to two standard acoustic test methods: ASTM “A” and “J” testing. For “A” testing the acoustic panels are placed all together flat against a surface and tested. “A” testing is the standardized testing method for the manufacturing industry. “J” testing simulates the recommended mounting of the product by the manufacturer. GIK tested two set-ups: 1) panels straddled in corners 2) panels spaced off the wall and mounted on stands. To our knowledge GIK Acoustics is the only company to provide data on both testing methods.

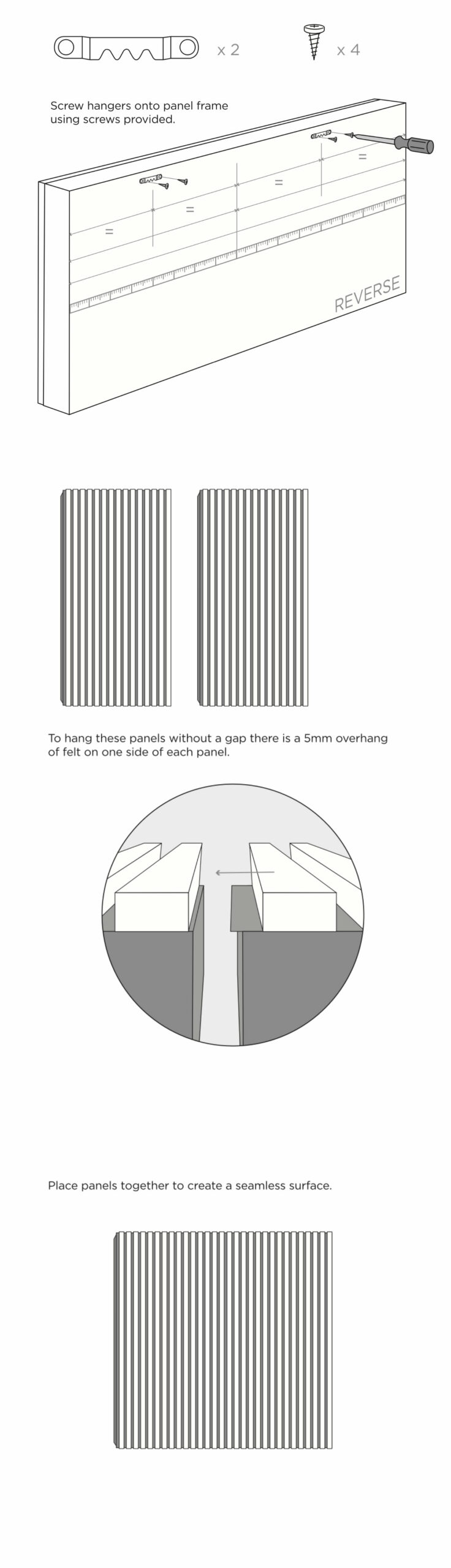

SlatFusor Installation
